0801470
ActivePhoenix Contact

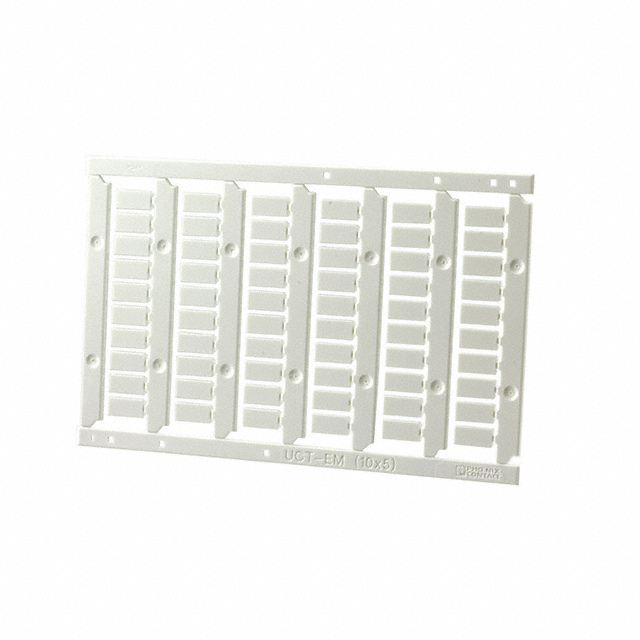

WIRE MARKER CLIP-ON 10MM X 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0801470
ActivePhoenix Contact
WIRE MARKER CLIP-ON 10MM X 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0801470 | UCT-EM Series |
|---|---|---|
| - | - | |
| Color | White | White, Yellow |
| Legend | Blank | Blank |
| Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | - | 5 - 30 mm |
| Size | - | 0.2 - 1.18 " |
| Size [x] | 10 mm | 7 - 21 mm |
| Size [x] | 0.39 " | 0.28 - 0.83 in |
| Size [y] | 0.2 in | 0.2 - 0.79 " |
| Size [y] | 5 mm | 5 - 20 mm |
| Type | Wire Marker, Clip-On | Wire Marker, Clip-On, Wire Marker, Cards |
UCT-EM Series
LABELS MARKER LABEL POLYCARBONATE WHITE 7X12MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Type | Size [y] | Size [x] | Size [y] | Size [x] | Color | Legend | Material | Size | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 0801501 | -40 °C | 120 °C | Wire Marker, Clip-On | 0.47 " | 0.28 in | 12 mm | 7 mm | White | Blank | Polycarbonate (PC) | ||
Phoenix Contact 0801485 | -40 °C | 120 °C | Cards, Wire Marker | 0.31 " | 0.39 " | 8 mm | 10 mm | White | Blank | Polycarbonate (PC) | ||
Phoenix Contact 0801483 | -40 °C | 120 °C | Cards, Wire Marker | 0.39 " | 0.67 in | 10 mm | 17 mm | White | Blank | Polycarbonate (PC) | ||
Phoenix Contact 0801842 | -40 °C | 120 °C | Cards, Wire Marker | 0.67 " | 0.31 in | White | Blank | Polycarbonate (PC) | 8 mm, 17 mm | |||
Phoenix Contact 0801493 | ||||||||||||
Phoenix Contact 0801475 | -40 °C | 120 °C | Cards, Wire Marker | 0.35 in | 0.67 in | 9 mm | 17 mm | White | Blank | Polycarbonate (PC) | ||
Phoenix Contact 0801505 | -40 °C | 120 °C | Wire Marker, Clip-On | White | Blank | Polycarbonate (PC) | 5 mm, 30 mm | 0.2 in, 1.18 " | ||||
Phoenix Contact 0801504 | -40 °C | 120 °C | Wire Marker | 0.59 in | 0.39 " | 15 mm | 10 mm | White | Blank | Polycarbonate (PC) | ||
Phoenix Contact 0801476 | ||||||||||||
Phoenix Contact 0801489 | -40 °C | 120 °C | Cards, Wire Marker | 0.31 " | 0.83 " | 8 mm | 21 mm | White | Blank | Polycarbonate (PC) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.46 | |
| 10 | $ 9.94 | |||
| 50 | $ 9.15 | |||
| 100 | $ 8.37 | |||
| 250 | $ 7.85 | |||
| 500 | $ 7.26 | |||
Description
General part information
UCT-EM Series
Wire Marker, Clip-On 0.39" W x 0.20" L (10.0mm x 5.0mm) White Polycarbonate (PC)
