L717DFE09P

Active

Amphenol ICC (Commercial Products)

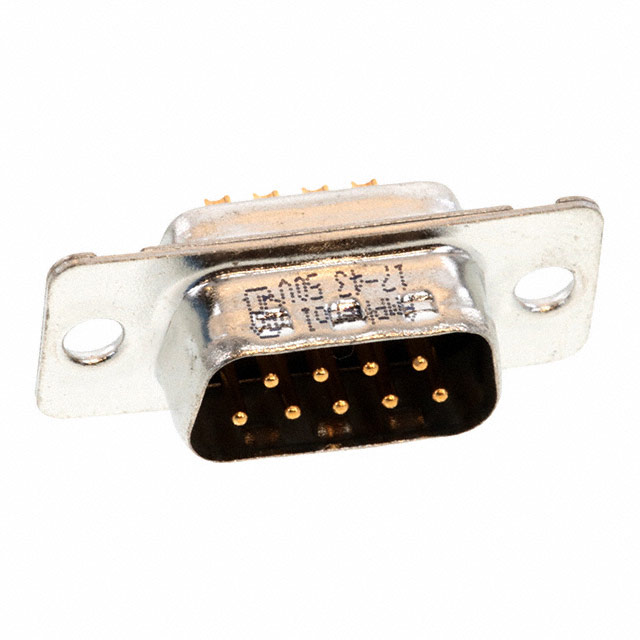

CONN D-SUB PLUG 9POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717DFE09P

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 9POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717DFE09P

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Voltage Rating	300 VDC

L717DFE09 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Termination	Features	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Dielectric Material	Number of Rows	Color	Connector Type	Flange Feature	Current Rating (Amps)	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Contact Type	Mounting Type	Number of Positions	Backset Spacing	Backset Spacing
Amphenol ICC (Commercial Products) L717DFE09PV	0.51 µm	20 µin	Brass	Solder	Grounding Indents	D-Sub	-55 °C	125 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Housing/Shell (Unthreaded)	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal	Panel Mount Through Hole	9
Amphenol ICC (Commercial Products) L717DFE09P1AMNVF2	0.51 µm	20 µin	Brass	Solder	Grounding Indents Mounting Brackets	D-Sub	-55 °C	155 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Female Screwlock (4-40) Mating Side	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal	Panel Mount Right Angle Through Hole	9	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L717DFE09PAJ4RM6VF2	0.51 µm	20 µin	Brass	Solder	Board Lock Grounding Indents Mounting Brackets	D-Sub	-55 °C	155 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Female Screwlock (4-40) Mating Side	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal	Panel Mount Right Angle Through Hole	9	0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L717DFE09PF179A	0.51 µm	20 µin	Brass	Wire Wrap	Grounding Indents	D-Sub	-55 °C	125 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Housing/Shell (Unthreaded)	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal	Panel Mount Through Hole	9
Amphenol ICC (Commercial Products) L717DFE09P1ATNRM6	0.51 µm	20 µin	Brass	Solder	Grounding Indents Mounting Brackets	D-Sub	-55 °C	125 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Housing/Shell (Unthreaded)	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal	Panel Mount Right Angle Through Hole	9	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L717DFE09P1AON	0.51 µm	20 µin	Brass	Solder	Grounding Indents	D-Sub	-55 °C	125 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Housing/Shell (Unthreaded)	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal	Panel Mount Right Angle Through Hole	9	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L717DFE09P	0.51 µm	20 µin	Brass		Grounding Indents	D-Sub	-55 °C	125 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Housing/Shell (Unthreaded)	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal		9
Amphenol ICC (Commercial Products) L717DFE09PAJ4	0.51 µm	20 µin	Brass	Solder	Grounding Indents Mounting Brackets	D-Sub	-55 °C	125 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Housing/Shell (Unthreaded)	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal	Panel Mount Right Angle Through Hole	9	0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L717DFE09P1AMN	0.51 µm	20 µin	Brass	Solder	Grounding Indents Mounting Brackets	D-Sub	-55 °C	125 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Housing/Shell (Unthreaded)	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal	Panel Mount Right Angle Through Hole	9	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L717DFE09PAJ3	0.51 µm	20 µin	Brass	Solder	Grounding Indents Mounting Brackets	D-Sub	-55 °C	155 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Housing/Shell (Unthreaded)	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal	Panel Mount Right Angle Through Hole	9	0.319 in	8.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 7.82
		10	$ 7.07
		25	$ 6.68
		50	$ 6.52
		100	$ 6.19
		250	$ 5.54
		500	$ 5.22
		1000	$ 4.56

Description

General part information

L717DFE09 Series

9 Position D-Sub Plug, Male Pins Connector
