L717DFE09P1AON

Active

Amphenol ICC (Commercial Products)

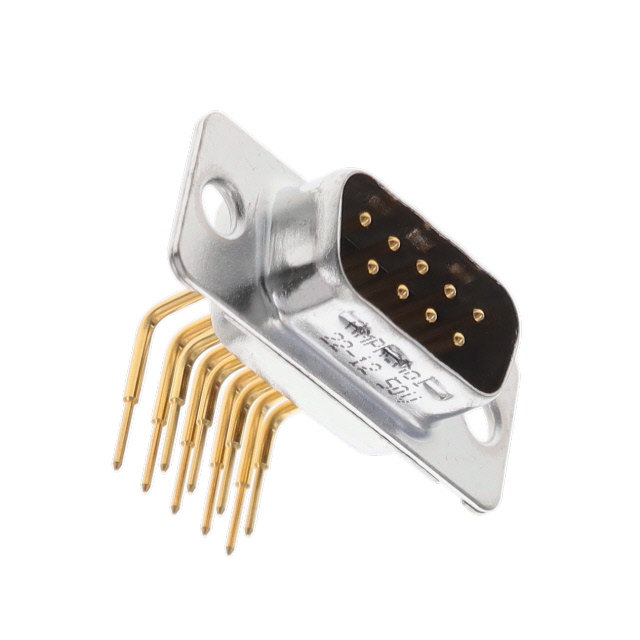

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717DFE09P1AON

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717DFE09P1AON

Backset Spacing	0.406 in
Backset Spacing	10.3 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	300 VDC

L717DFE09 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Termination	Features	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Dielectric Material	Number of Rows	Color	Connector Type	Flange Feature	Current Rating (Amps)	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Contact Type	Mounting Type	Number of Positions	Backset Spacing	Backset Spacing
Amphenol ICC (Commercial Products) L717DFE09PV	0.51 µm	20 µin	Brass	Solder	Grounding Indents	D-Sub	-55 °C	125 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Housing/Shell (Unthreaded)	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal	Panel Mount Through Hole	9
Amphenol ICC (Commercial Products) L717DFE09P1AMNVF2	0.51 µm	20 µin	Brass	Solder	Grounding Indents Mounting Brackets	D-Sub	-55 °C	155 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Female Screwlock (4-40) Mating Side	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal	Panel Mount Right Angle Through Hole	9	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L717DFE09PAJ4RM6VF2	0.51 µm	20 µin	Brass	Solder	Board Lock Grounding Indents Mounting Brackets	D-Sub	-55 °C	155 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Female Screwlock (4-40) Mating Side	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal	Panel Mount Right Angle Through Hole	9	0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L717DFE09PF179A	0.51 µm	20 µin	Brass	Wire Wrap	Grounding Indents	D-Sub	-55 °C	125 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Housing/Shell (Unthreaded)	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal	Panel Mount Through Hole	9
Amphenol ICC (Commercial Products) L717DFE09P1ATNRM6	0.51 µm	20 µin	Brass	Solder	Grounding Indents Mounting Brackets	D-Sub	-55 °C	125 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Housing/Shell (Unthreaded)	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal	Panel Mount Right Angle Through Hole	9	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L717DFE09P1AON	0.51 µm	20 µin	Brass	Solder	Grounding Indents	D-Sub	-55 °C	125 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Housing/Shell (Unthreaded)	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal	Panel Mount Right Angle Through Hole	9	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L717DFE09P	0.51 µm	20 µin	Brass		Grounding Indents	D-Sub	-55 °C	125 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Housing/Shell (Unthreaded)	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal		9
Amphenol ICC (Commercial Products) L717DFE09PAJ4	0.51 µm	20 µin	Brass	Solder	Grounding Indents Mounting Brackets	D-Sub	-55 °C	125 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Housing/Shell (Unthreaded)	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal	Panel Mount Right Angle Through Hole	9	0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L717DFE09P1AMN	0.51 µm	20 µin	Brass	Solder	Grounding Indents Mounting Brackets	D-Sub	-55 °C	125 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Housing/Shell (Unthreaded)	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal	Panel Mount Right Angle Through Hole	9	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L717DFE09PAJ3	0.51 µm	20 µin	Brass	Solder	Grounding Indents Mounting Brackets	D-Sub	-55 °C	155 °C	Gold	Thermoplastic Glass Filled	2	Black	Male Pins Plug	Housing/Shell (Unthreaded)	7.5 A	UL94 V-0	DE E	1	300 VDC	Signal	Panel Mount Right Angle Through Hole	9	0.319 in	8.1 mm
