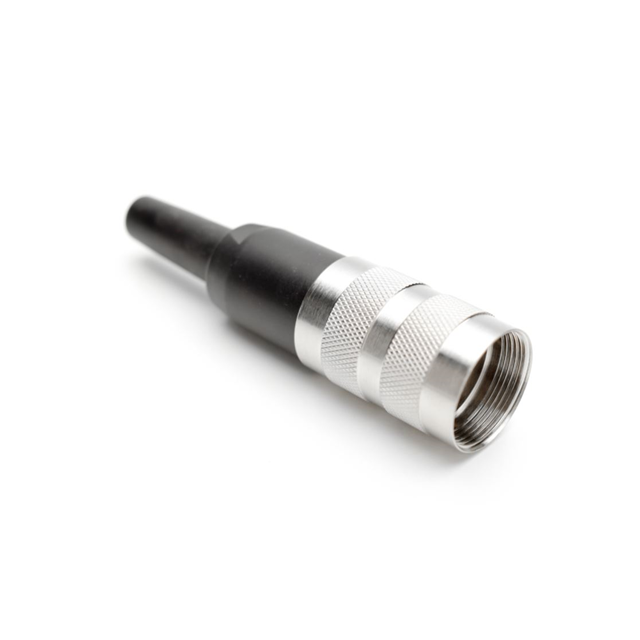

T 3301 551

Active

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 4POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC091 A,B,D Series Catalog Datasheet

T 3301 551

Active

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 4POS INLINE

Deep-Dive with AI

DocumentsC091 A,B,D Series Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T 3301 551

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Features	Cable Clamp, Strain Relief, Coupling Nut
Housing Color	Silver
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-4
Shielding	Shielded
Type	For Female Sockets

T 3301 Series

Part	Shell Material	Voltage Rating	Features	Primary Material	Connector Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Color	Shell Size - Insert	Shell Finish	Current Rating (Amps)	Shielding	Number of Positions	Ingress Protection	Contact Finish - Mating	Contact Shape	Contact Size	Type	Housing Color	Insert Material	Contact Type	Material Flammability Rating	Note
Amphenol Tuchel Industrial T 3301 018	Die Cast	250 VDC	Strain Relief	Metal	Female Sockets Plug	Free Hanging (In-Line)	100 °C	-40 °C	Keyed	Silver	M16-4	Nickel	10 A	Shielded	4	IP40	Gold
Amphenol Tuchel Industrial T 3301 002	Die Cast	250 VDC	Cable Clamp Strain Relief	Metal	Female Sockets Plug	Free Hanging (In-Line)	100 °C	-40 °C	Keyed	Silver	M16-4	Nickel	10 A	Shielded	4	IP40	Silver
Amphenol Tuchel Industrial T 3301 028	Die Cast	250 VDC	Cable Clamp Strain Relief	Metal	Female Sockets Plug	Free Hanging (In-Line)	100 °C	-40 °C	Keyed	Silver	M16-4	Nickel	10 A	Shielded	4	IP40	Gold
Amphenol Tuchel Industrial T 3301 004	Die Cast	250 VDC	Cable Clamp Strain Relief	Metal	Female Sockets Plug	Free Hanging (In-Line)	100 °C	-40 °C	Keyed	Silver	M16-4	Nickel	10 A	Shielded	4	IP40	Silver
Amphenol Tuchel Industrial T 3301 551	Die Cast		Cable Clamp Coupling Nut Strain Relief		Plug Housing	Free Hanging (In-Line)	100 °C	-40 °C	Keyed		M16-4	Nickel		Shielded	4	IP40		Circular	1.5 mm	For Female Sockets	Silver	Thermoplastic	Crimp	UL94 V-0	Contacts Not Included
Amphenol Tuchel Industrial T 3301 048	Die Cast	250 VDC	Cable Clamp Strain Relief	Metal	Female Sockets Plug	Free Hanging (In-Line)	100 °C	-40 °C	Keyed	Silver	M16-4	Nickel	10 A	Shielded	4	IP40	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.24
		10	$ 11.74
		25	$ 11.29
		50	$ 10.84
		100	$ 10.23
		300	$ 9.33
		500	$ 8.73
		1000	$ 8.01

Description

General part information

T 3301 Series

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Cable Clamp, Coupling Nut, Strain Relief

Documents

Technical documentation and resources

C091 A,B,D Series Catalog

Datasheet
