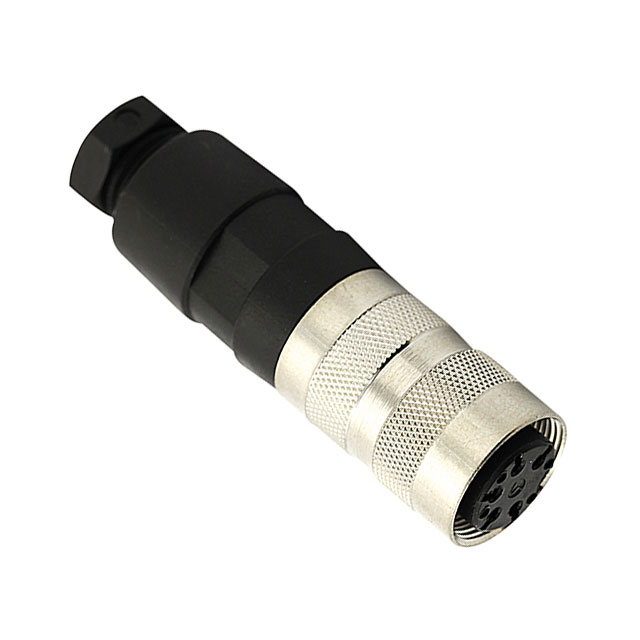

T 3301 004

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 4P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC091 A,B,D Series Catalog Datasheet

T 3301 004

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 4P SOLDER CUP

Deep-Dive with AI

DocumentsC091 A,B,D Series Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T 3301 004

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	10 A
Features	Cable Clamp, Strain Relief
Ingress Protection	IP40
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-4
Shielding	Shielded
Voltage Rating	250 VDC

T 3301 Series

Part	Shell Material	Voltage Rating	Features	Primary Material	Connector Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Color	Shell Size - Insert	Shell Finish	Current Rating (Amps)	Shielding	Number of Positions	Ingress Protection	Contact Finish - Mating	Contact Shape	Contact Size	Type	Housing Color	Insert Material	Contact Type	Material Flammability Rating	Note
Amphenol Tuchel Industrial T 3301 018	Die Cast	250 VDC	Strain Relief	Metal	Female Sockets Plug	Free Hanging (In-Line)	100 °C	-40 °C	Keyed	Silver	M16-4	Nickel	10 A	Shielded	4	IP40	Gold
Amphenol Tuchel Industrial T 3301 002	Die Cast	250 VDC	Cable Clamp Strain Relief	Metal	Female Sockets Plug	Free Hanging (In-Line)	100 °C	-40 °C	Keyed	Silver	M16-4	Nickel	10 A	Shielded	4	IP40	Silver
Amphenol Tuchel Industrial T 3301 028	Die Cast	250 VDC	Cable Clamp Strain Relief	Metal	Female Sockets Plug	Free Hanging (In-Line)	100 °C	-40 °C	Keyed	Silver	M16-4	Nickel	10 A	Shielded	4	IP40	Gold
Amphenol Tuchel Industrial T 3301 004	Die Cast	250 VDC	Cable Clamp Strain Relief	Metal	Female Sockets Plug	Free Hanging (In-Line)	100 °C	-40 °C	Keyed	Silver	M16-4	Nickel	10 A	Shielded	4	IP40	Silver
Amphenol Tuchel Industrial T 3301 551	Die Cast		Cable Clamp Coupling Nut Strain Relief		Plug Housing	Free Hanging (In-Line)	100 °C	-40 °C	Keyed		M16-4	Nickel		Shielded	4	IP40		Circular	1.5 mm	For Female Sockets	Silver	Thermoplastic	Crimp	UL94 V-0	Contacts Not Included
Amphenol Tuchel Industrial T 3301 048	Die Cast	250 VDC	Cable Clamp Strain Relief	Metal	Female Sockets Plug	Free Hanging (In-Line)	100 °C	-40 °C	Keyed	Silver	M16-4	Nickel	10 A	Shielded	4	IP40	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 10.51

Description

General part information

T 3301 Series

4 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

C091 A,B,D Series Catalog

Datasheet
