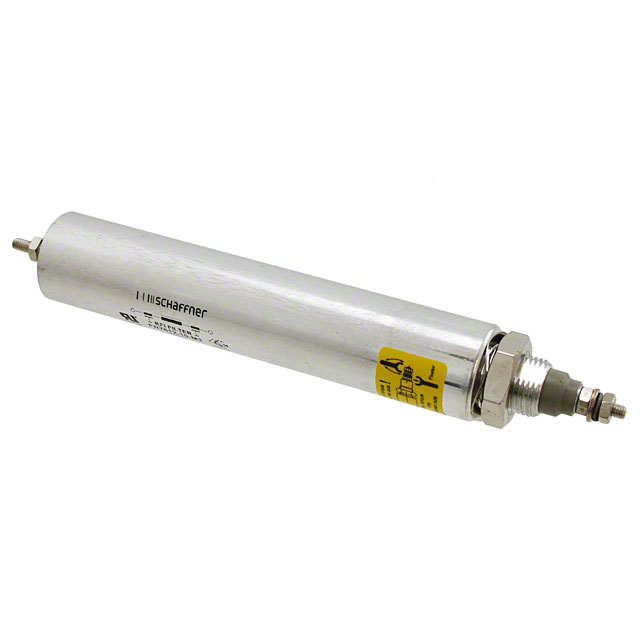

FN7612-10-M3
ActiveTE Connectivity Raychem Cable Protection
FILTER LC(PI) 70NH/0.047UH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN7612-10-M3 |
|---|---|
| Applications | Data Lines for Mobile Devices |
| Current | 10 A |
| ESD Protection | False |
| Filter Order | 3 |
| Mounting Type | Bolt Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Axial - Threaded Terminals |
| Resistance - Channel (Ohms) | 0.00152 Ohms |
| Size / Dimension [diameter] | 0.787 in |
| Size / Dimension [diameter] | 20 mm |
| Size / Dimension [x] | 111 mm |
| Size / Dimension [x] | 4.37 in |
| Technology | LC (Pi) |
| Type | Low Pass |
| Values | 0.047 µF, 70 nH |
| Voltage - Rated | 1 kV |
| Voltage - Rated | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 144.05 | |
| 10 | $ 117.04 | |||
| 40 | $ 107.30 | |||
| 80 | $ 104.24 | |||
Description
General part information
Schaffner FN761X Series
1000 VDC, 10 A, Threaded Stud, 8.86 mA Leakage Current @ 250VAC, 50Hz, IP00, UL 94V-0, Schaffner FN761X, Feedthrough EMC Filters
