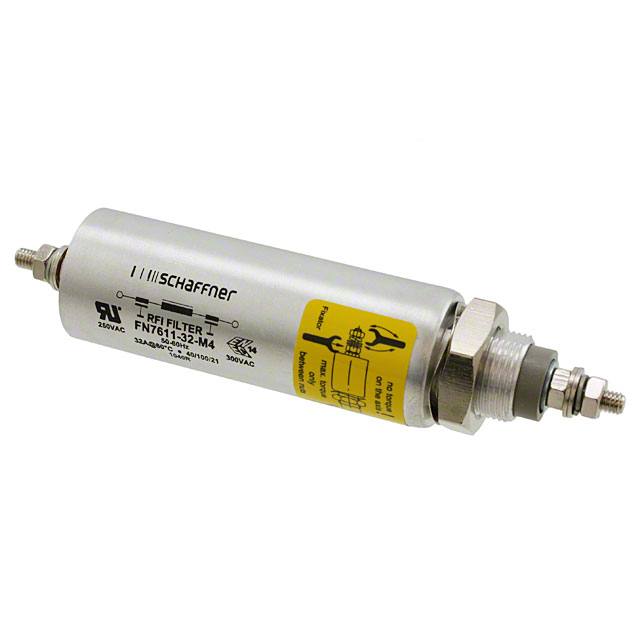

FN7611-32-M4
ActiveTE Connectivity Raychem Cable Protection
FILTER LC(PI) 70NH/0.022UH BOLT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN7611-32-M4 |
|---|---|
| Applications | Data Lines for Mobile Devices |
| Current | 32 A |
| ESD Protection | False |
| Filter Order | 3 |
| Mounting Type | Bolt Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Axial - Threaded Terminals |
| Resistance - Channel (Ohms) | 0.00065 Ohms |
| Size / Dimension | 25 mm, 83 mm |
| Size / Dimension [diameter] | 0.984 " |
| Size / Dimension [x] | 3.268 in |
| Technology | LC (Pi) |
| Type | Low Pass |
| Values [custom] | 70 nH |
| Values [custom] | 0.022 µF |
| Voltage - Rated | 1 kV |
| Voltage - Rated | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 187.32 | |
| 10 | $ 154.09 | |||
| 40 | $ 142.09 | |||
Description
General part information
Schaffner FN761X Series
LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 70nH, C = 0.022µF 32 A Axial - Threaded Terminals
