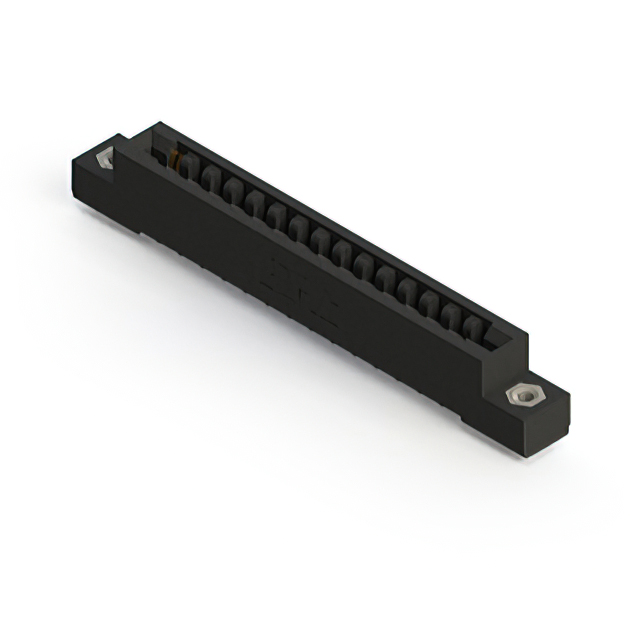

857-015-547-108
ActiveEDAC Inc.
CONN EDGE SGL FMALE 15POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
857-015-547-108
ActiveEDAC Inc.
CONN EDGE SGL FMALE 15POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-015-547-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
857-015 Series
...
| Part | Number of Positions/Bay/Row [custom] | Contact Material | Termination | Termination Rows | Gender | Material - Insulation | Read Out | Contact Finish | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions | Color | Number of Rows | Mounting Type | Contact Type | Pitch [x] | Pitch [x] | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 15 | Copper Alloy | Solder | 1 | Female | Polyphenylene Sulfide (PPS) | Dual | Tin | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 30 | Black | 2 | Through Hole Right Angle | Semi Bellows | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | 15 | Copper Alloy | Wire Wrap | 1 | Female | Polyphenylene Sulfide (PPS) | Dual | Tin | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 30 | Black | 2 | Through Hole | Semi Bellows | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | 15 | Copper Alloy | Solder | 1 | Female | Polyphenylene Sulfide (PPS) | Dual | Tin | 30 | Black | 2 | Through Hole Right Angle | Semi Bellows | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||||||
EDAC Inc. | 15 | Copper Alloy | Wire Wrap | 1 | Female | Polyphenylene Sulfide (PPS) | Single | Gold | Side Mount Opening Unthreaded | 15 | Black | 1 | Through Hole | Semi Bellows | 0.156 in | 3.96 mm | Non Specified - Single Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | ||
EDAC Inc. | 15 | Copper Alloy | Solder | 1 | Female | Polyphenylene Sulfide (PPS) | Single | Gold | Side Mount Opening Unthreaded | 15 | Black | 1 | Through Hole | Semi Bellows | 0.156 in | 3.96 mm | Non Specified - Single Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | ||
EDAC Inc. | 15 | Copper Alloy | Solder | 1 | Female | Polyphenylene Sulfide (PPS) | Dual | Gold | Side Mount Opening Unthreaded | 30 | Black | 2 | Through Hole Right Angle | Semi Bellows | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | ||
EDAC Inc. | 15 | Copper Alloy | Solder | 1 | Female | Polyphenylene Sulfide (PPS) | Single | Gold | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 15 | Black | 1 | Through Hole | Semi Bellows | 0.156 in | 3.96 mm | Non Specified - Single Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 15 | Copper Alloy | Wire Wrap | 1 | Female | Polyphenylene Sulfide (PPS) | Single | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 15 | Black | 1 | Through Hole | Semi Bellows | 0.156 in | 3.96 mm | Non Specified - Single Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 15 | Copper Alloy | Solder | 1 | Female | Polyphenylene Sulfide (PPS) | Single | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 15 | Black | 1 | Through Hole | Semi Bellows | 0.156 in | 3.96 mm | Non Specified - Single Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 15 | Copper Alloy | Solder | 1 | Female | Polyphenylene Sulfide (PPS) | Dual | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 30 | Black | 2 | Through Hole Right Angle | Semi Bellows | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
857-015 Series
15 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
