857-015-454-104

Active

EDAC Inc.

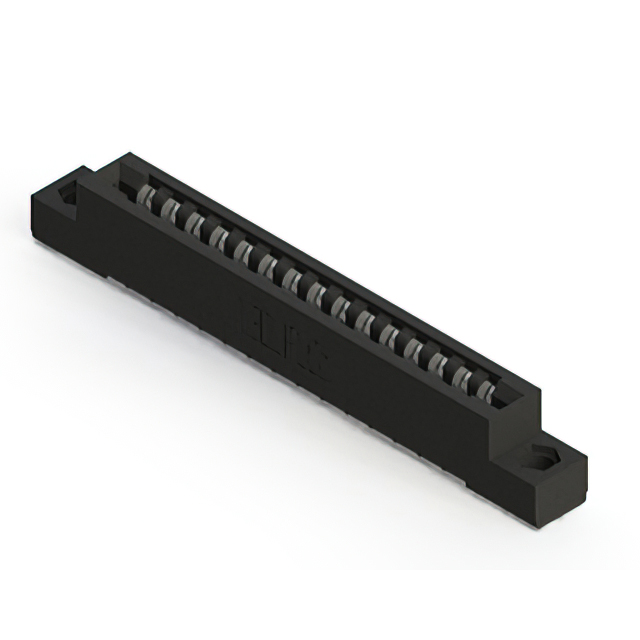

CARD EDGE CONNECTOR, 15 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-015-454-104

Active

EDAC Inc.

CARD EDGE CONNECTOR, 15 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-015-454-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	30
Number of Positions/Bay/Row [custom]	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

857-015 Series

...

Part	Number of Positions/Bay/Row [custom]	Contact Material	Termination	Termination Rows	Gender	Material - Insulation	Read Out	Contact Finish	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions	Color	Number of Rows	Mounting Type	Contact Type	Pitch [x]	Pitch [x]	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature
EDAC Inc. 857-015-454-104	15	Copper Alloy	Solder	1	Female	Polyphenylene Sulfide (PPS)	Dual	Tin	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	30	Black	2	Through Hole Right Angle	Semi Bellows	0.156 in	3.96 mm	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 857-015-441-103	15	Copper Alloy	Wire Wrap	1	Female	Polyphenylene Sulfide (PPS)	Dual	Tin	2.95 mm	Floating Bobbin Flush Mount	0.116 in	30	Black	2	Through Hole	Semi Bellows	0.156 in	3.96 mm	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 857-015-454-101	15	Copper Alloy	Solder	1	Female	Polyphenylene Sulfide (PPS)	Dual	Tin				30	Black	2	Through Hole Right Angle	Semi Bellows	0.156 in	3.96 mm	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 857-015-547-112	15	Copper Alloy	Wire Wrap	1	Female	Polyphenylene Sulfide (PPS)	Single	Gold		Side Mount Opening Unthreaded		15	Black	1	Through Hole	Semi Bellows	0.156 in	3.96 mm	Non Specified - Single Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	3.25 mm	0.128 in
EDAC Inc. 857-015-525-112	15	Copper Alloy	Solder	1	Female	Polyphenylene Sulfide (PPS)	Single	Gold		Side Mount Opening Unthreaded		15	Black	1	Through Hole	Semi Bellows	0.156 in	3.96 mm	Non Specified - Single Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	3.25 mm	0.128 in
EDAC Inc. 857-015-553-112	15	Copper Alloy	Solder	1	Female	Polyphenylene Sulfide (PPS)	Dual	Gold		Side Mount Opening Unthreaded		30	Black	2	Through Hole Right Angle	Semi Bellows	0.156 in	3.96 mm	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	3.25 mm	0.128 in
EDAC Inc. 857-015-531-104	15	Copper Alloy	Solder	1	Female	Polyphenylene Sulfide (PPS)	Single	Gold	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	15	Black	1	Through Hole	Semi Bellows	0.156 in	3.96 mm	Non Specified - Single Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám
EDAC Inc. 857-015-547-108	15	Copper Alloy	Wire Wrap	1	Female	Polyphenylene Sulfide (PPS)	Single	Gold		4-40 Flush Mount Threaded Insert Top Opening		15	Black	1	Through Hole	Semi Bellows	0.156 in	3.96 mm	Non Specified - Single Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám
EDAC Inc. 857-015-531-108	15	Copper Alloy	Solder	1	Female	Polyphenylene Sulfide (PPS)	Single	Gold		4-40 Flush Mount Threaded Insert Top Opening		15	Black	1	Through Hole	Semi Bellows	0.156 in	3.96 mm	Non Specified - Single Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám
EDAC Inc. 857-015-557-108	15	Copper Alloy	Solder	1	Female	Polyphenylene Sulfide (PPS)	Dual	Gold		4-40 Flush Mount Threaded Insert Top Opening		30	Black	2	Through Hole Right Angle	Semi Bellows	0.156 in	3.96 mm	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 136.24

Description

General part information

857-015 Series

30 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
