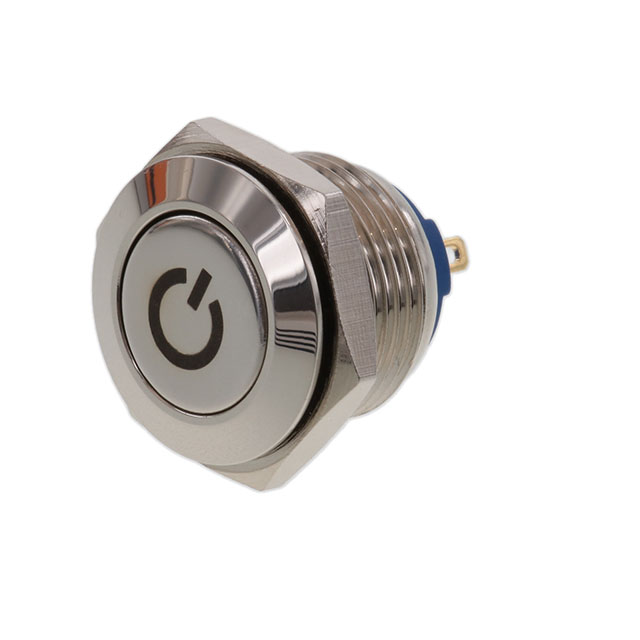

PV2F240NNM01

Active

E-Switch

SWITCH PUSHBUTTON SPST-NO 2A 48V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSHBUTTON SPST-NO 2A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	PV2F240NNM01

Actuator Marking	Power Symbol
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal
Voltage Rating - DC	48 V

Part	Circuit	Actuator Type	Termination Style	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Type	Ingress Protection	Panel Cutout Dimensions [diameter]	Switch Function	Mechanical Life	Color - Actuator/Cap	Electrical Life	Mounting Type	Voltage Rating - DC	Current Rating (Amps)
E-Switch PV2F240SS	SPST-NO	Button Flush Round	Solder Lug	No Marking	55 °C	-20 C	Anti-Vandal	IP65 - Dust Tight Water Resistant	16 mm	Off-Mom	1000000 Cycles	Silver	200000 Cycles	Panel Mount Front	48 V	2 A
E-Switch PV2F240NNM01	SPST-NO	Button Flush Round	Solder Lug	Power Symbol	55 °C	-20 C	Anti-Vandal	IP65 - Dust Tight Water Resistant	16 mm	Off-Mom	1000000 Cycles	Silver	200000 Cycles	Panel Mount Front	48 V	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front

Technical documentation and resources

No documents available
