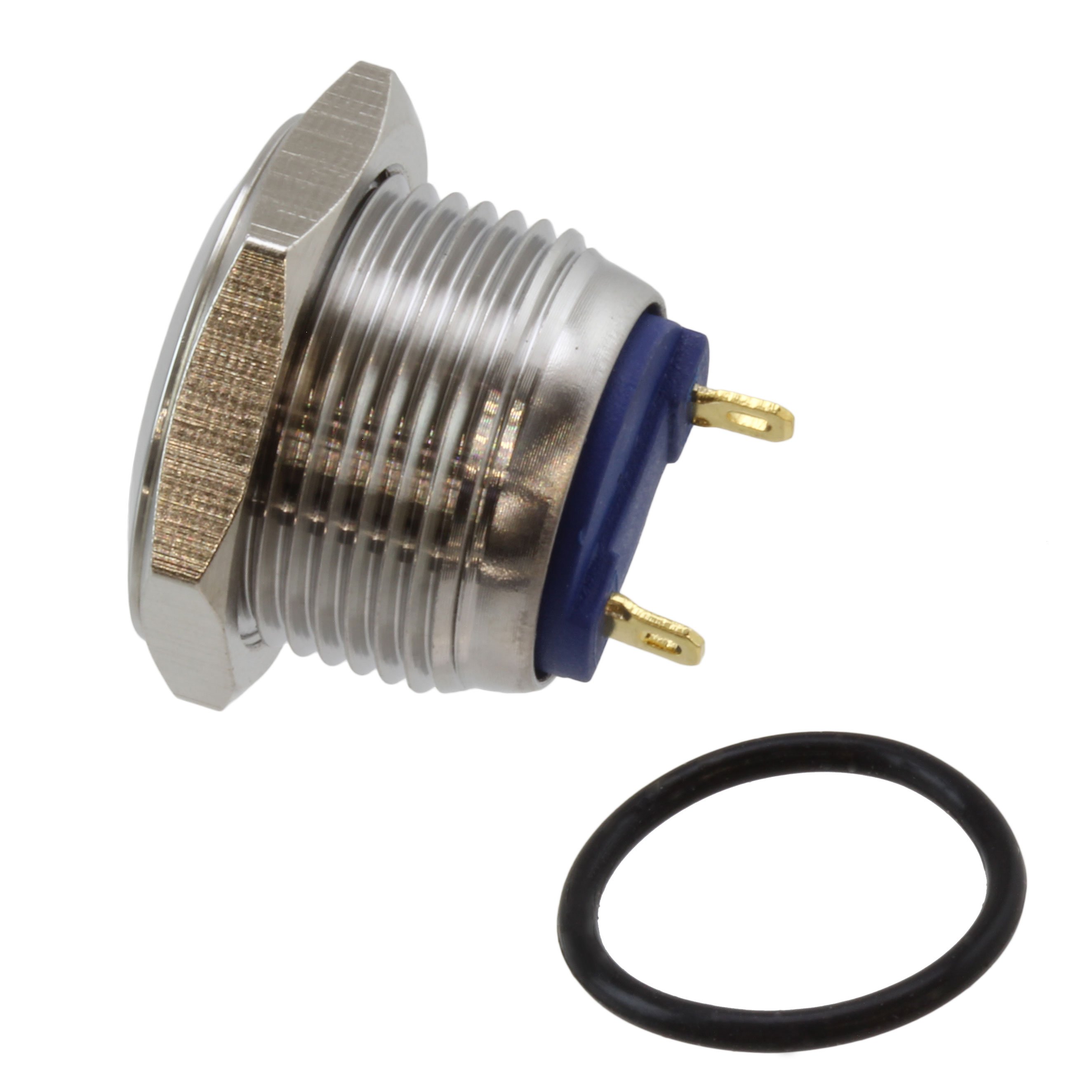

PV2F240 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PUSHBUTTON SPST-NO 2A 48V
| Part | Termination Style | Switch Function | Operating Temperature (Min) | Operating Temperature (Max) | Circuit | Actuator Marking | Voltage Rating - DC | Panel Cutout Diameter | Panel Cutout Shape | Actuator Type | Ingress Protection IP Rating | Ingress Protection Description | Type | Mounting Type | Color - Actuator/Cap | Current Rating | Mechanical Life (Cycles) | Electrical Life (Cycles) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Solder Lug | Off-Mom | -20 °C | 55 °C | SPST-NO | No Marking | 48 V | 16 mm | Circular | Button Flush Round | IP65 | Dust Tight Water Resistant | Anti-Vandal | Front Panel Mount | Silver | 2 A | 1000000 Cycles | 200000 |
 E-Switch | Solder Lug | Off-Mom | -20 °C | 55 °C | SPST-NO | Power Symbol | 48 V | 16 mm | Circular | Button Flush Round | IP65 | Dust Tight Water Resistant | Anti-Vandal | Front Panel Mount | Silver | 2 A | 1000000 Cycles | 200000 |
