HEN.2M.308.XLNP
ActiveLEMO

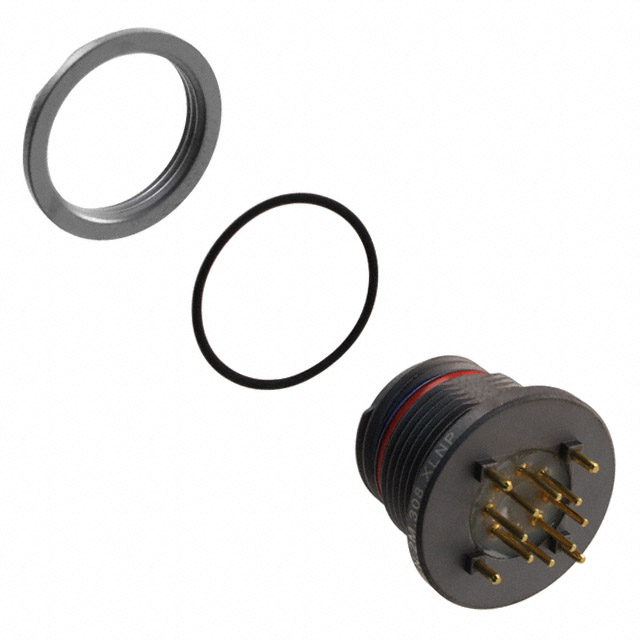

CONN RCPT FMALE 8POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
HEN.2M.308.XLNP
ActiveLEMO
CONN RCPT FMALE 8POS GOLD SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HEN.2M.308.XLNP | HEN.2M Series |
|---|---|---|
| Applications | Military, Aerospace, Automotive, Aviation | Military, Aerospace, Automotive, Aviation |
| Color | Gray | Gray |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 10 A | 4 - 10 A |
| Features | Potted | Potted |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 8 | 8 - 19 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -20 C | -20 C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Aluminum Alloy | Aluminum Alloy, Aluminum |
| Shell Size - Insert | 308 | 308 - 514 |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder |
HEN.2M Series
Toggle Switches 2M1HSP1TJBKM1GE
| Part | Ingress Protection | Current Rating (Amps) | Mounting Type | Insert Material | Features | Color | Mounting Feature | Shell Material | Contact Finish - Mating | Shell Size - Insert | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Connector Type | Shell Finish | Number of Positions | Orientation | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Material | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO HEN.2M.308.XLNP | IP68 - Dust Tight, Waterproof | 10 A | Panel Mount, Through Hole | Polyetheretherketone (PEEK) | Potted | Gray | Bulkhead - Front Side Nut | Aluminum Alloy | Gold | 308 | 59 Áin | 1.5 Ám | Aerospace, Automotive, Aviation, Military | Receptacle, Female Sockets | Nickel | 8 | N | Shielded | -20 C | 80 C | Solder | Bronze | Metal |
LEMO HEN.2M.514.XLNP | IP68 - Dust Tight, Waterproof | Panel Mount, Through Hole | Polyetheretherketone (PEEK) | Potted | Gray | Bulkhead - Front Side Nut | Aluminum | Gold | 514 | Aerospace, Automotive, Aviation, Military | Receptacle, Female Sockets | Nickel | 14 | N | Shielded | -20 C | 80 C | Solder | Metal | ||||
LEMO HEN.2M.319.XLNP | IP68 - Dust Tight, Waterproof | 4 A | Panel Mount, Through Hole | Polyetheretherketone (PEEK) | Potted | Gray | Bulkhead - Front Side Nut | Aluminum Alloy | Gold | 319 | 59 Áin | 1.5 Ám | Aerospace, Automotive, Aviation, Military | Receptacle, Female Sockets | Nickel | 19 | N | Shielded | -20 C | 80 C | Solder | Bronze | Metal |
LEMO HEN.2M.310.XLNP | IP68 - Dust Tight, Waterproof | 8 A | Panel Mount, Through Hole | Polyetheretherketone (PEEK) | Potted | Gray | Bulkhead - Front Side Nut | Aluminum Alloy | Gold | 310 | 59 Áin | 1.5 Ám | Aerospace, Automotive, Aviation, Military | Receptacle, Female Sockets | Nickel | 10 | N | Shielded | -20 C | 80 C | Solder | Bronze | Metal |
LEMO HEN.2M.312.XLNP | IP68 - Dust Tight, Waterproof | 7 A | Panel Mount, Through Hole | Polyetheretherketone (PEEK) | Potted | Gray | Bulkhead - Front Side Nut | Aluminum Alloy | Gold | 312 | 59 Áin | 1.5 Ám | Aerospace, Automotive, Aviation, Military | Receptacle, Female Sockets | Nickel | 12 | N | Shielded | -20 C | 80 C | Solder | Bronze | Metal |
