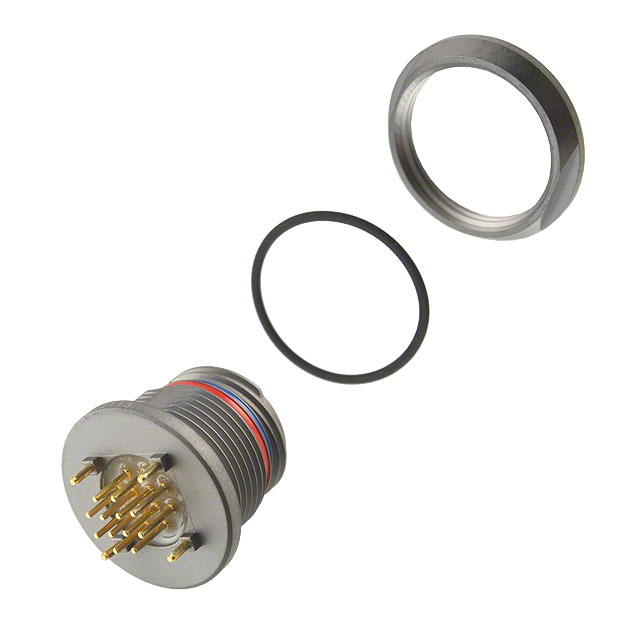

HEN.2M.312.XLNP

Active

LEMO

STANDARD CIRCULAR CONNECTOR 12P FEMALE PCB BLUE BACK PNL MNT RECEPT

Search across all available documentation for this part.

Active

LEMO

STANDARD CIRCULAR CONNECTOR 12P FEMALE PCB BLUE BACK PNL MNT RECEPT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HEN.2M.312.XLNP	2M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Cable Opening	-	0.512 in
Cable Opening	-	13 mm
Color	Gray	Gray
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	7 A	4 - 7 A
Features	Potted	Potted, Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount, Free Hanging (In-Line)
Number of Positions	12	12 - 19
Operating Temperature [Max]	80 C	80 - 200 C
Operating Temperature [Min]	-20 C	-55 - -20 C
Orientation	N	N, S
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	312	312 - 319
Shielding	Shielded	Shielded
Termination	Solder	Solder, Crimp

Toggle Switches 2M1HSP1TJBKM1GE

Part	Number of Positions	Color	Features	Contact Material	Primary Material	Mounting Feature	Mounting Type	Shell Size - Insert	Orientation	Ingress Protection	Insert Material	Shell Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Applications	Contact Finish - Mating	Termination	Shielding	Shell Finish	Cable Opening [custom]	Cable Opening [custom]
LEMO HEN.2M.312.XLNP	12	Gray	Potted	Bronze	Metal	Bulkhead - Front Side Nut	Panel Mount, Through Hole	312	N	IP68 - Dust Tight, Waterproof	Polyetheretherketone (PEEK)	Aluminum Alloy	Receptacle, Female Sockets	-20 C	80 C	59 Áin	1.5 Ám	7 A	Aerospace, Automotive, Aviation, Military	Gold	Solder	Shielded	Nickel
LEMO FGS.2M.319.XLMT	19	Gray	Coupling Nut	Bronze	Metal		Free Hanging (In-Line)	319	S	IP68 - Dust Tight, Waterproof	Polyetheretherketone (PEEK)	Aluminum Alloy	Female Sockets, Plug	-55 °C	200 °C	59 Áin	1.5 Ám	4 A	Aerospace, Automotive, Aviation, Military	Gold	Crimp	Shielded	Nickel	0.512 in	13 mm
