General part information

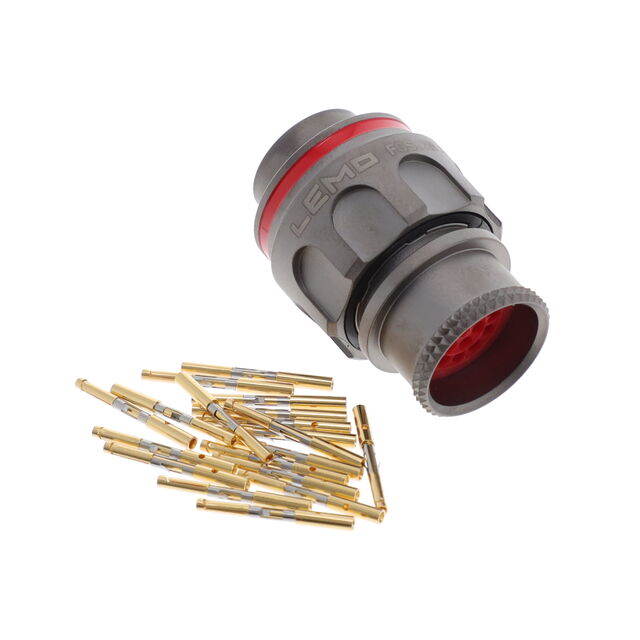

19 Position Circular Connector Plug, Female Sockets Crimp
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | FGS.2M.319.XLMT | FGS.2M Series |
|---|---|---|
| Applications | Military, Aerospace, Automotive, Aviation | Military, Aerospace, Automotive, Aviation |
| Cable Opening [custom] | 0.512 in | 0.512 in |
| Cable Opening [custom] | 13 mm | 13 mm |
| Color | Gray | Gray |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 4 A | 4 - 7 A |
| Features | Coupling Nut | Coupling Nut |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 19 | 12 - 19 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | S | S |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 319 | 312 - 319 |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
| Part | Number of Positions | Orientation | Primary Material | Shielding | Applications | Current Rating (Amps) | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Color | Ingress Protection | Shell Material | Cable Opening [custom] | Cable Opening [custom] | Mounting Type | Shell Size - Insert | Contact Finish - Mating | Shell Finish | Contact Material | Features | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO FGS.2M.312.XLMT | 12 | S | Metal | Shielded | Aerospace, Automotive, Aviation, Military | 7 A | Crimp | -55 °C | 200 °C | Gray | IP68 - Dust Tight, Waterproof | Aluminum Alloy | 0.512 in | 13 mm | Free Hanging (In-Line) | 312 | Gold | Nickel | Bronze | Coupling Nut | Female Sockets, Plug | 59 Áin | 1.5 Ám | Polyetheretherketone (PEEK) |
LEMO FGS.2M.319.XLMT | 19 | S | Metal | Shielded | Aerospace, Automotive, Aviation, Military | 4 A | Crimp | -55 °C | 200 °C | Gray | IP68 - Dust Tight, Waterproof | Aluminum Alloy | 0.512 in | 13 mm | Free Hanging (In-Line) | 319 | Gold | Nickel | Bronze | Coupling Nut | Female Sockets, Plug | 59 Áin | 1.5 Ám | Polyetheretherketone (PEEK) |
