HEN.2M.310.XLNP

Active

LEMO

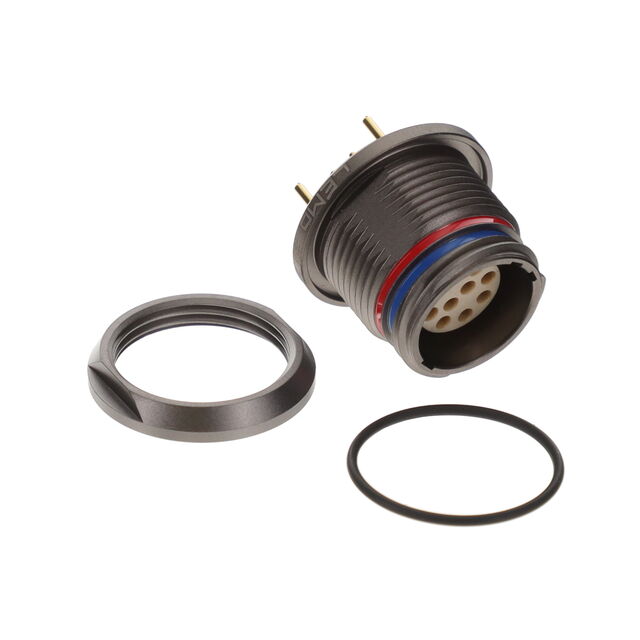

CONN RCPT FMALE 10POS GOLD SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HEN.2M.310.XLNP

Active

LEMO

CONN RCPT FMALE 10POS GOLD SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HEN.2M.310.XLNP	HEN.2M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Color	Gray	Gray
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	8 A	4 - 10 A
Features	Potted	Potted
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	10	8 - 19
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy, Aluminum
Shell Size - Insert	310	308 - 514
Shielding	Shielded	Shielded
Termination	Solder	Solder

HEN.2M Series

Toggle Switches 2M1HSP1TJBKM1GE

Part	Ingress Protection	Current Rating (Amps)	Mounting Type	Insert Material	Features	Color	Mounting Feature	Shell Material	Contact Finish - Mating	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Connector Type	Shell Finish	Number of Positions	Orientation	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material	Primary Material
LEMO HEN.2M.308.XLNP	IP68 - Dust Tight, Waterproof	10 A	Panel Mount, Through Hole	Polyetheretherketone (PEEK)	Potted	Gray	Bulkhead - Front Side Nut	Aluminum Alloy	Gold	308	59 Áin	1.5 Ám	Aerospace, Automotive, Aviation, Military	Receptacle, Female Sockets	Nickel	8	N	Shielded	-20 C	80 C	Solder	Bronze	Metal
LEMO HEN.2M.514.XLNP	IP68 - Dust Tight, Waterproof		Panel Mount, Through Hole	Polyetheretherketone (PEEK)	Potted	Gray	Bulkhead - Front Side Nut	Aluminum	Gold	514			Aerospace, Automotive, Aviation, Military	Receptacle, Female Sockets	Nickel	14	N	Shielded	-20 C	80 C	Solder		Metal
LEMO HEN.2M.319.XLNP	IP68 - Dust Tight, Waterproof	4 A	Panel Mount, Through Hole	Polyetheretherketone (PEEK)	Potted	Gray	Bulkhead - Front Side Nut	Aluminum Alloy	Gold	319	59 Áin	1.5 Ám	Aerospace, Automotive, Aviation, Military	Receptacle, Female Sockets	Nickel	19	N	Shielded	-20 C	80 C	Solder	Bronze	Metal
LEMO HEN.2M.310.XLNP	IP68 - Dust Tight, Waterproof	8 A	Panel Mount, Through Hole	Polyetheretherketone (PEEK)	Potted	Gray	Bulkhead - Front Side Nut	Aluminum Alloy	Gold	310	59 Áin	1.5 Ám	Aerospace, Automotive, Aviation, Military	Receptacle, Female Sockets	Nickel	10	N	Shielded	-20 C	80 C	Solder	Bronze	Metal
LEMO HEN.2M.312.XLNP	IP68 - Dust Tight, Waterproof	7 A	Panel Mount, Through Hole	Polyetheretherketone (PEEK)	Potted	Gray	Bulkhead - Front Side Nut	Aluminum Alloy	Gold	312	59 Áin	1.5 Ám	Aerospace, Automotive, Aviation, Military	Receptacle, Female Sockets	Nickel	12	N	Shielded	-20 C	80 C	Solder	Bronze	Metal
