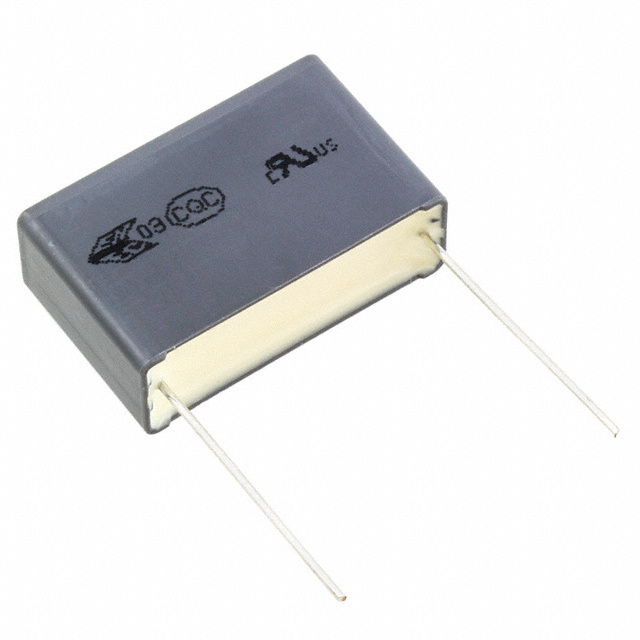

R46KR415000P0M

Active

KEMET

CAP FILM 1.5UF 20% 560VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R46KR415000P0M

Active

KEMET

CAP FILM 1.5UF 20% 560VDC RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R46KR415000P0M

Applications	EMI, RFI Suppression
Capacitance	1.5 µF
Dielectric Material	Metallized, Polypropylene (PP)
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	11 mm
Size / Dimension [y]	0.433 in
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	275 V
Voltage Rating - DC	560 V

R46KR Series

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Dielectric Material	Lead Spacing	Lead Spacing	Mounting Type	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Capacitance	Applications	Voltage Rating - DC	Voltage Rating - AC	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]
KEMET R46KR34700001M	1.26 in	0.354 in	32 mm	9 mm	Radial	0.673 in	17.1 mm	Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	20 %	0.47 µF	EMI RFI Suppression	560 V	275 V	PC Pins
KEMET R46KR415000P0M	1.26 in	0.433 in	32 mm	11 mm	Radial			Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	20 %	1.5 µF	EMI RFI Suppression	560 V	275 V	PC Pins
KEMET R46KR447000P1M	1.26 in	0.551 in	32 mm	14 mm	Radial	1.106 "	28.1 mm	Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	20 %	4.7 µF	EMI RFI Suppression	560 V	275 V	PC Pins
KEMET R46KR433050M2K	1.26 in	0.709 "	32 mm	18 mm	Radial			Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	10 %	3.3 µF	EMI RFI Suppression	560 V	275 V	PC Pins
KEMET R46KR422045M2M	1.26 in	0.512 in	32 mm		Radial			Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	20 %	2.2 µF	EMI RFI Suppression	560 V	275 V	PC Pins	25.1 mm	0.988 "	13 mm
KEMET R46KR433000M2K	1.26 in	0.709 "	32 mm	18 mm	Radial			Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	10 %	3.3 µF	EMI RFI Suppression	560 V	275 V	PC Pins
KEMET R46KR34704001K	1.26 in	0.354 in	32 mm	9 mm	Radial	0.673 in	17.1 mm	Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	10 %	0.47 µF	EMI RFI Suppression	560 V	275 V	PC Pins
KEMET R46KR4100JHM1K	1.26 in	0.433 in	32 mm	11 mm	Radial			Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	10 %	1 µF	EMI RFI Suppression	560 V	275 V	PC Pins
KEMET R46KR422050M2K	1.26 in	0.512 in	32 mm		Radial			Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	10 %	2.2 µF	EMI RFI Suppression	560 V	275 V	PC Pins	25.1 mm	0.988 "	13 mm
KEMET R46KR447050M1K	1.26 in	0.866 in	32 mm	22 mm	Radial	1.461 in	37.1 mm	Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	10 %	4.7 µF	EMI RFI Suppression	560 V	275 V	PC Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1120	$ 0.85
Newark	Each	1000	$ 0.87
		2500	$ 0.80

Description

General part information

R46KR Series

1.5 µF Film Capacitor 275V 560V Polypropylene (PP), Metallized Radial
