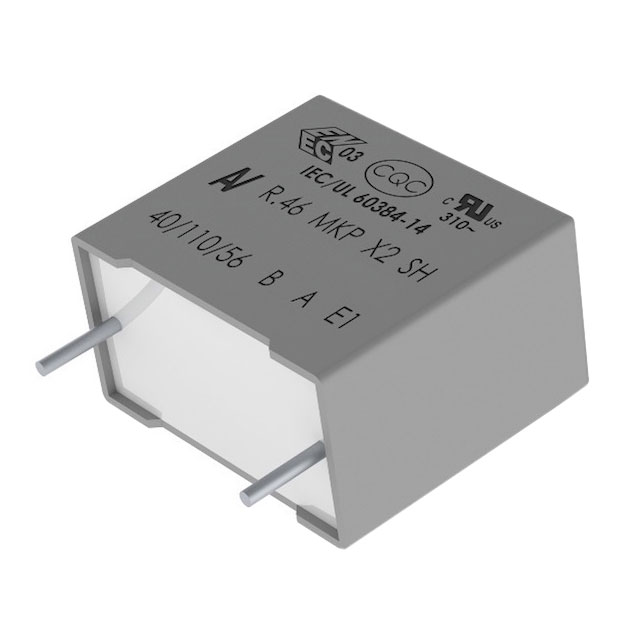

R46KR447000P1M

Active

KEMET

FILM CAPACITOR, POLYPROPYLENE, 560V, 20% +TOL, 20% -TOL, 4.7UF, THROUGH HOLE MOUNT, RADIAL LEADED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet R46KR447000P1M Spec +1

R46KR447000P1M

Active

KEMET

FILM CAPACITOR, POLYPROPYLENE, 560V, 20% +TOL, 20% -TOL, 4.7UF, THROUGH HOLE MOUNT, RADIAL LEADED

Deep-Dive with AI

DocumentsDatasheet R46KR447000P1M Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R46KR447000P1M

Applications	EMI, RFI Suppression
Capacitance	4.7 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	28.1 mm
Height - Seated (Max) [Max]	1.106 "
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2
Size / Dimension [x]	1.26 in
Size / Dimension [x]	32 mm
Size / Dimension [y]	0.551 in
Size / Dimension [y]	14 mm
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	275 V
Voltage Rating - DC	560 V

R46KR Series

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Dielectric Material	Lead Spacing	Lead Spacing	Mounting Type	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Capacitance	Applications	Voltage Rating - DC	Voltage Rating - AC	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]
KEMET R46KR34700001M	1.26 in	0.354 in	32 mm	9 mm	Radial	0.673 in	17.1 mm	Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	20 %	0.47 µF	EMI RFI Suppression	560 V	275 V	PC Pins
KEMET R46KR415000P0M	1.26 in	0.433 in	32 mm	11 mm	Radial			Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	20 %	1.5 µF	EMI RFI Suppression	560 V	275 V	PC Pins
KEMET R46KR447000P1M	1.26 in	0.551 in	32 mm	14 mm	Radial	1.106 "	28.1 mm	Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	20 %	4.7 µF	EMI RFI Suppression	560 V	275 V	PC Pins
KEMET R46KR433050M2K	1.26 in	0.709 "	32 mm	18 mm	Radial			Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	10 %	3.3 µF	EMI RFI Suppression	560 V	275 V	PC Pins
KEMET R46KR422045M2M	1.26 in	0.512 in	32 mm		Radial			Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	20 %	2.2 µF	EMI RFI Suppression	560 V	275 V	PC Pins	25.1 mm	0.988 "	13 mm
KEMET R46KR433000M2K	1.26 in	0.709 "	32 mm	18 mm	Radial			Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	10 %	3.3 µF	EMI RFI Suppression	560 V	275 V	PC Pins
KEMET R46KR34704001K	1.26 in	0.354 in	32 mm	9 mm	Radial	0.673 in	17.1 mm	Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	10 %	0.47 µF	EMI RFI Suppression	560 V	275 V	PC Pins
KEMET R46KR4100JHM1K	1.26 in	0.433 in	32 mm	11 mm	Radial			Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	10 %	1 µF	EMI RFI Suppression	560 V	275 V	PC Pins
KEMET R46KR422050M2K	1.26 in	0.512 in	32 mm		Radial			Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	10 %	2.2 µF	EMI RFI Suppression	560 V	275 V	PC Pins	25.1 mm	0.988 "	13 mm
KEMET R46KR447050M1K	1.26 in	0.866 in	32 mm	22 mm	Radial	1.461 in	37.1 mm	Metallized Polypropylene (PP)	27.5 mm	1.083 in	Through Hole	X2	-40 °C	110 °C	10 %	4.7 µF	EMI RFI Suppression	560 V	275 V	PC Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.10
		10	$ 3.15
		40	$ 2.84
		352	$ 2.12
		704	$ 1.92
		1056	$ 1.79
		2464	$ 1.72
		4928	$ 1.69
Newark	Each	1000	$ 1.88
		2500	$ 1.75

Description

General part information

R46KR Series

4.7 µF Film Capacitor 275V 560V Polypropylene (PP), Metallized Radial
