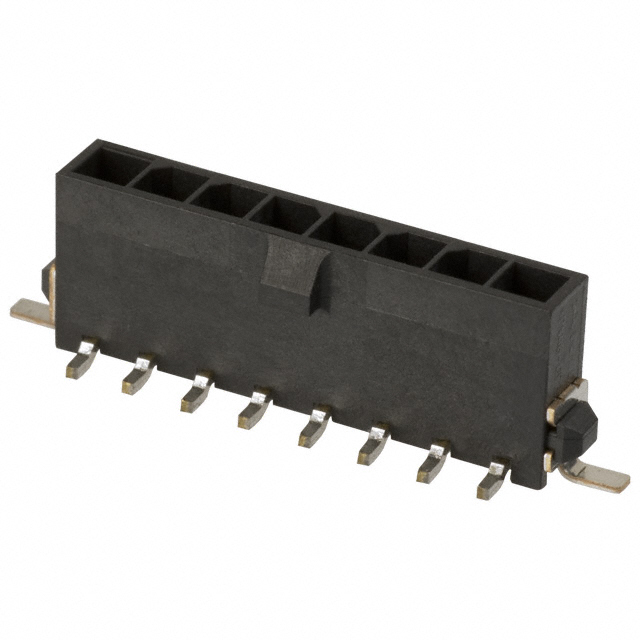

2-1445096-8

Active

TE Connectivity Raychem Cable Protection

MICRO MNL HDR ASSY SINGLE ROW

Deep-Dive with AI

Search across all available documentation for this part.

2-1445096-8

Active

TE Connectivity Raychem Cable Protection

MICRO MNL HDR ASSY SINGLE ROW

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-1445096-8

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Pick and Place, Solder Retention
Insulation Color	Black
Insulation Height	9.25 mm
Insulation Height	0.364 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

1445096 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Shape	Material Flammability Rating	Number of Positions Loaded	Insulation Color	Insulation Height	Insulation Height	Current Rating (Amps)	Mounting Type	Shrouding	Contact Material	Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Connector Type	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Voltage Rating	Insulation Material	Number of Rows	Fastening Type	Applications	Contact Finish - Mating	Number of Positions	Termination
TE Connectivity Raychem Cable Protection 1445096-6	2.54 µm	100 µin	0.118 in	3 mm	Square	UL94 V-0	All	Black	9.25 mm	0.364 in	Varies by Wire Gauge	Surface Mount	Shrouded - 4 Wall	Brass	Board to Cable/Wire	-40 °C	105 ░C	Tin-Lead	Header	Male Pin	30 Áin	0.76 Ám	Pick and Place Solder Retention	250 VDC	Nylon Polyamide (PA)	1	Locking Ramp	General Purpose	Gold	6	Solder
TE Connectivity Raychem Cable Protection 2-1445096-5	2.54 µm	100 µin	0.118 in	3 mm	Square	UL94 V-0	All	Black	9.25 mm	0.364 in	Varies by Wire Gauge	Surface Mount	Shrouded - 4 Wall	Brass	Board to Cable/Wire	-40 °C	105 ░C	Tin	Header	Male Pin	30 Áin	0.76 Ám	Pick and Place Solder Retention	250 VDC	Nylon Polyamide (PA)	1	Locking Ramp	General Purpose	Gold or Gold-Palladium		Solder
TE Connectivity Raychem Cable Protection 2-1445096-8	2.54 µm	100 µin	0.118 in	3 mm	Square	UL94 V-0	All	Black	9.25 mm	0.364 in	Varies by Wire Gauge	Surface Mount	Shrouded - 4 Wall	Brass	Board to Cable/Wire	-40 °C	105 ░C	Tin	Header	Male Pin	30 Áin	0.76 Ám	Pick and Place Solder Retention	250 VDC	Nylon Polyamide (PA)	1	Locking Ramp	General Purpose	Gold	8	Solder
TE Connectivity Raychem Cable Protection 2-1445096-2	2.54 µm	100 µin	0.118 in	3 mm	Square	UL94 V-0	All	Black	9.25 mm	0.364 in	Varies by Wire Gauge	Surface Mount	Shrouded - 4 Wall	Brass	Board to Cable/Wire	-40 °C	105 ░C	Tin	Header	Male Pin	30 Áin	0.76 Ám	Pick and Place Solder Retention	250 VDC	Nylon Polyamide (PA)	1	Locking Ramp	General Purpose	Gold Gold or Gold-Palladium	2	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.97
		10	$ 1.80
		100	$ 1.61
	Digi-Reel®	1	$ 1.97
		10	$ 1.80
		100	$ 1.61
	Tape & Reel (TR)	210	$ 1.64
Newark	Each	100	$ 2.31
		500	$ 2.01
		1000	$ 1.81
		2500	$ 1.75

Description

General part information

1445096 Series

Connector Header Surface Mount 8 position 0.118" (3.00mm)

Documents

Technical documentation and resources

No documents available
