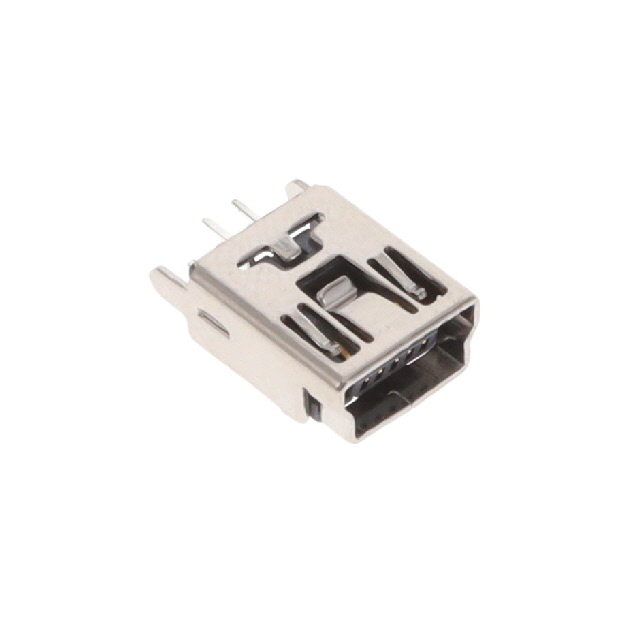

10119313-301CLF
ActiveAmphenol ICC (FCI)
CONN RCPT USB2.0 MINI B 5POS TH
Deep-Dive with AI
Search across all available documentation for this part.
10119313-301CLF
ActiveAmphenol ICC (FCI)
CONN RCPT USB2.0 MINI B 5POS TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10119313-301CLF |
|---|---|
| Connector Type | USB - mini B |
| Contact Finish | Gold |
| Features | Board Guide |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 5000 |
| Mounting Type | Through Hole |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Shell/Shielding Material | Copper Alloy |
| Shielding | Unshielded |
| Specifications | USB 2.0 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.20 | |
| 10 | $ 0.91 | |||
| 25 | $ 0.82 | |||
| 50 | $ 0.76 | |||
| 100 | $ 0.70 | |||
| Tape & Reel (TR) | 350 | $ 0.61 | ||
| 700 | $ 0.57 | |||
| 1050 | $ 0.54 | |||
| 1750 | $ 0.51 | |||
| 2450 | $ 0.50 | |||
| 3500 | $ 0.48 | |||
| 8750 | $ 0.44 | |||
| 17500 | $ 0.41 | |||
Description
General part information
10119313 Series
USB - mini B USB 2.0 Receptacle Connector 5 Position Through Hole
