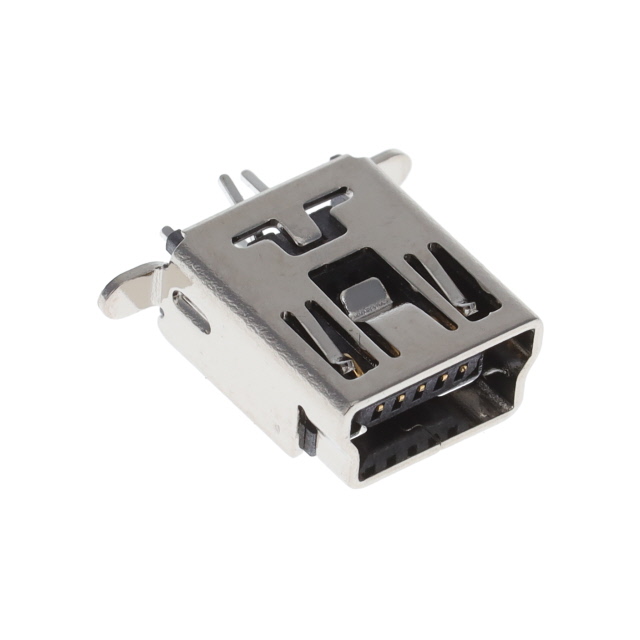

10119313-302TLF

Active

Amphenol ICC (FCI)

CONN RCPT USB2.0 MINI B 5POS TH

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT USB2.0 MINI B 5POS TH

Technical Specifications

Parameters and characteristics for this part

Specification	10119313-302TLF

Connector Type	USB - mini B
Contact Finish	Gold
Features	Solder Retention
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	5000
Mounting Type	Through Hole
Number of Contacts	5
Number of Ports	1
Shell/Shielding Material	Copper Alloy
Shielding	Unshielded
Specifications	USB 2.0
Termination	Solder

Part	Mounting Type	Material Flammability Rating	Number of Contacts	Insulation Color	Termination	Connector Type	Contact Finish	Shell/Shielding Material	Mating Cycles	Number of Ports	Shielding	Specifications	Features	Gender
Amphenol ICC (FCI) 10119313-301C1LF	Through Hole	UL94 V-0	5	Black	Solder	USB - mini B	Gold	Copper Alloy	5000	1	Unshielded	USB 2.0	Solder Retention	Receptacle
Amphenol ICC (FCI) 10119313-302TLF	Through Hole	UL94 V-0	5	Black	Solder	USB - mini B	Gold	Copper Alloy	5000	1	Unshielded	USB 2.0	Solder Retention	Receptacle
Amphenol ICC (FCI) 10119313-302CLF	Through Hole	UL94 V-0	5	Black	Solder	USB - mini B	Gold	Copper Alloy	5000	1	Unshielded	USB 2.0	Solder Retention	Receptacle
Amphenol ICC (FCI) 10119313-301CLF	Through Hole	UL94 V-0	5	Black	Solder	USB - mini B	Gold	Copper Alloy	5000	1	Unshielded	USB 2.0	Board Guide	Receptacle
