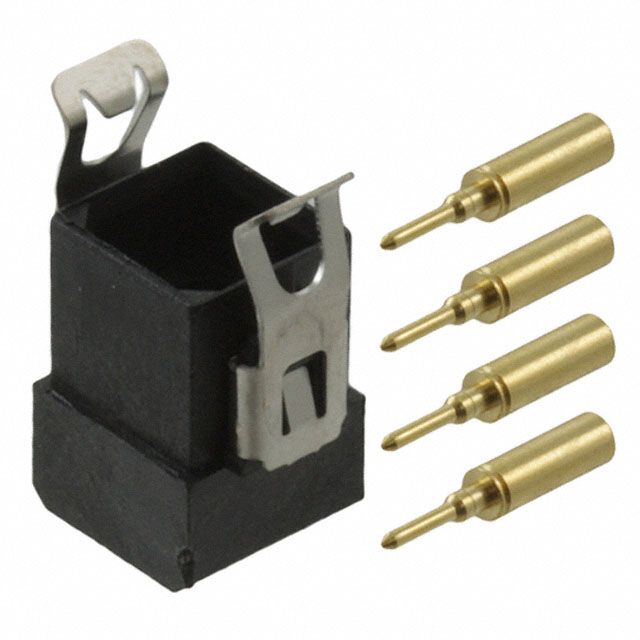

M80-8120405

Active

Harwin Inc.

WIRE-TO-BOARD CONNECTOR, DATAMATE L-TEK M80 SERIES, CRIMP, PLUG, 4, 2 MM, GOLD PLATED CONTACTS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

WIRE-TO-BOARD CONNECTOR, DATAMATE L-TEK M80 SERIES, CRIMP, PLUG, 4, 2 MM, GOLD PLATED CONTACTS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Fastening Type	Wire Type	Cable Termination	Mounting Type	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Color	Connector Type	Contact Type	Contact Finish	Row Spacing	Row Spacing	Number of Rows
Harwin Inc. M80-8120805	8	10 Áin	0.25 Ám	Latch Holder	Discrete	Crimp	Free Hanging (In-Line)	0.079 in	2 mm	24 AWG	28 AWG	Black	Plug	Male Pin	Gold	2 mm	0.079 in	2
Harwin Inc. M80-8120605	6	10 Áin	0.25 Ám	Latch Holder	Discrete	Crimp	Free Hanging (In-Line)	0.079 in	2 mm	24 AWG	28 AWG	Black	Plug	Male Pin	Gold	2 mm	0.079 in	2
Harwin Inc. M80-8120405	4	10 Áin	0.25 Ám	Latch Holder	Discrete	Crimp	Free Hanging (In-Line)	0.079 in	2 mm	24 AWG	28 AWG	Black	Plug	Male Pin	Gold	2 mm	0.079 in	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Rectangular Plug Connector Crimp Gold 24-28 AWG
