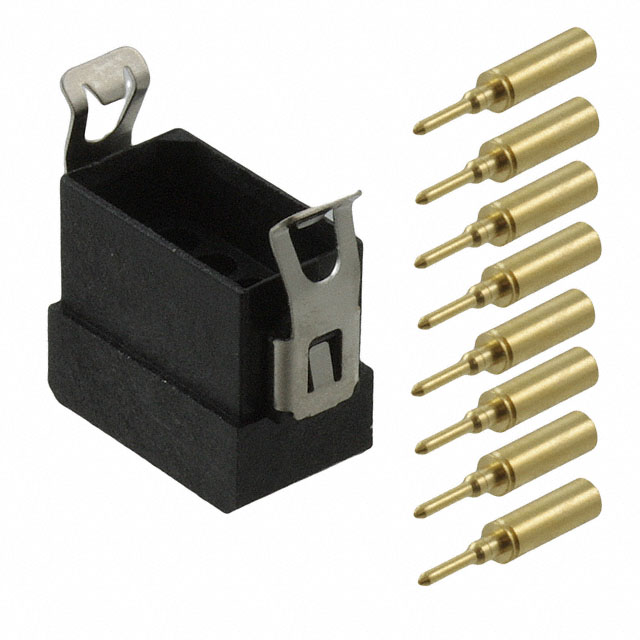

M80-8120805 - M80-8120805

M80-8120805

Active
Harwin Inc.

RECTANGULAR CONNECTOR, DATAMATE L-TEK M80 SERIES, 8 CONTACTS, PLUG, 2 MM, CRIMP, 2 ROW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetM80, M83 Series Spec Sheet+5
M80-8120805 - M80-8120805

M80-8120805

Active
Harwin Inc.

RECTANGULAR CONNECTOR, DATAMATE L-TEK M80 SERIES, 8 CONTACTS, PLUG, 2 MM, CRIMP, 2 ROW

Deep-Dive with AI

DocumentsDatasheetM80, M83 Series Spec Sheet+5

Technical Specifications

Parameters and characteristics for this part

SpecificationM80-8120805
Cable TerminationCrimp
ColorBlack
Connector TypePlug
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
Contact TypeMale Pin
Fastening TypeLatch Holder
Mounting TypeFree Hanging (In-Line)
Number of Positions8
Number of Rows2
Pitch [x]0.079 in
Pitch [x]2 mm
Row Spacing2 mm
Row Spacing0.079 in
Wire Gauge [Max]28 AWG
Wire Gauge [Min]24 AWG
Wire TypeDiscrete

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 8.28
10$ 7.49
25$ 7.07
50$ 6.90
100$ 6.56
300$ 5.87
500$ 5.52
1000$ 4.83
NewarkEach 1$ 7.48
10$ 6.10
25$ 5.62
50$ 5.29
100$ 4.97
250$ 4.64
500$ 4.31
1000$ 4.27

Description

General part information

M80-812 Series

8 Position Rectangular Plug Connector Crimp Gold 24-28 AWG
