STM32F469AGY6TR
ActiveSTMicroelectronics
HIGH-PERFORMANCE ADVANCED LINE, ARM CORTEX-M4 CORE WITH DSP AND FPU, 1 MBYTE OF FLASH MEMORY, 180 MHZ CPU, ART ACCELERATOR, CHROM-ART ACCELERATOR, FMC WITH SDRAM, DUAL QSPI, TFT, MIPI-DSI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STM32F469AGY6TR | STM32F469 Series |
|---|---|---|
| Connectivity | - | SPI, USB OTG, SDIO, EBI/EMI, SAI, IrDA, USB, LINbus, CANbus, I2C, UART/USART |
| Connectivity [custom] | CANbus, USB, SPI, EBI/EMI, LINbus, SDIO, I2C, Ethernet, SAI, UART/USART, USB OTG, IrDA | CANbus, USB, SPI, EBI/EMI, LINbus, SDIO, I2C, Ethernet, SAI, UART/USART, USB OTG, IrDA |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core |
| Data Converters | A/D 24x12b, D/A 2x12b | A/D 24x12b, D/A 2x12b, A/D 16x12b, A/D 20x12b |
| Data Converters | - | 12 b |
| Data Converters | - | 2 - 14 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 114 | 71 - 161 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal |

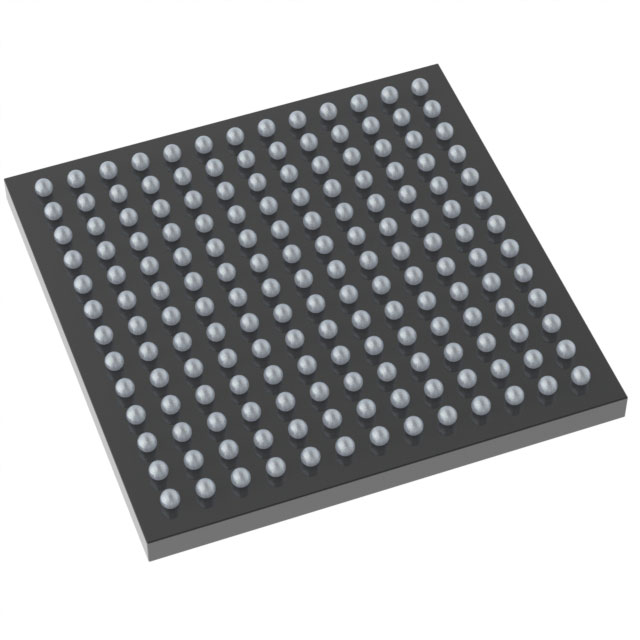

| Package / Case | 168-UFBGA, WLCSP | 100-LQFP, 216-TFBGA, 176-LQFP, 144-LQFP, 208-LQFP, 168-UFBGA, WLCSP, 201-UFBGA, 169-UFBGA |
| Peripherals | DMA, I2S, POR, WDT, Brown-out Detect/Reset, LCD, PWM | DMA, I2S, POR, WDT, Brown-out Detect/Reset, LCD, PWM |
| Program Memory Size | 1 MB | 1 - 512 KB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 384 K | 384 K |
| Speed | 180 MHz | 180 MHz |
| Supplier Device Package | 168-WLCSP | 100-LQFP (14x14), 216-TFBGA (13x13), 176-LQFP (24x24), 144-LQFP (20x20), 208-LQFP (28x28), 168-WLCSP, 176+25UFBGA (10x10), 169-UFBGA (7x7) |
| Supplier Device Package [x] | 4.89 | 4.89 |
| Supplier Device Package [y] | 5.69 | 5.69 |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.7 V | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Avnet Americas | Reel | 5000 | $ 7.68 | |
| 10000 | $ 7.56 | |||
| 20000 | $ 7.43 | |||
| 30000 | $ 7.31 | |||
| 40000 | $ 7.23 | |||
| DigiKey | Tape & Reel (TR) | 5000 | $ 7.81 | |
| Digikey | Tape & Reel (TR) | 5000 | $ 7.68 | |
| Future Electronics | N/A | 5000 | $ 7.23 | |
| Mouser Electronics | N/A | 5000 | $ 7.44 | |
STM32F469 Series
High-performance advanced line, Arm Cortex-M4 core with DSP and FPU, 2 Mbytes of Flash memory, 180 MHz CPU, ART Accelerator, Chrom-ART Accelerator, FMC with SDRAM, Dual QSPI, TFT, MIPI-DSI
| Part | Oscillator Type | Number of I/O | Peripherals | Data Converters [custom] | Data Converters [custom] | Program Memory Type | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Speed | Program Memory Size | Core Size | Package / Case | Supplier Device Package | RAM Size | Mounting Type | Connectivity [custom] | Core Processor | Data Converters | Supplier Device Package [x] | Supplier Device Package [y] | Connectivity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STM32F469VET6 | Internal | 71 | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | 12 b | 2, 14 | FLASH | 3.6 V | 1.7 V | 85 °C | -40 °C | 180 MHz | 512 KB | 32-Bit Single-Core | 100-LQFP | 100-LQFP (14x14) | 384 K | Surface Mount | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG | ARM® Cortex®-M4 | ||||
STMicroelectronics STM32F469NIH6TR | Internal | 161 | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | FLASH | 3.6 V | 1.7 V | 85 °C | -40 °C | 180 MHz | 2 MB | 32-Bit Single-Core | 216-TFBGA | 216-TFBGA (13x13) | 384 K | Surface Mount | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG | ARM® Cortex®-M4 | A/D 24x12b, D/A 2x12b | |||||
STMicroelectronics STM32F469IGT6 | Internal | 131 | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | FLASH | 3.6 V | 1.7 V | 85 °C | -40 °C | 180 MHz | 1 MB | 32-Bit Single-Core | 176-LQFP | 176-LQFP (24x24) | 384 K | Surface Mount | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG | ARM® Cortex®-M4 | A/D 16x12b, D/A 2x12b | |||||
STMicroelectronics STM32F469ZIT6 | Internal | 106 | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | FLASH | 3.6 V | 1.7 V | 85 °C | -40 °C | 180 MHz | 2 MB | 32-Bit Single-Core | 144-LQFP | 144-LQFP (20x20) | 384 K | Surface Mount | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG | ARM® Cortex®-M4 | A/D 20x12b, D/A 2x12b | |||||
STMicroelectronics STM32F469BIT6 | Internal | 161 | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | FLASH | 3.6 V | 1.7 V | 85 °C | -40 °C | 180 MHz | 2 MB | 32-Bit Single-Core | 208-LQFP | 208-LQFP (28x28) | 384 K | Surface Mount | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG | ARM® Cortex®-M4 | A/D 24x12b, D/A 2x12b | |||||
STMicroelectronics STM32F469AGY6TR | Internal | 114 | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | FLASH | 3.6 V | 1.7 V | 85 °C | -40 °C | 180 MHz | 1 MB | 32-Bit Single-Core | 168-UFBGA, WLCSP | 168-WLCSP | 384 K | Surface Mount | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG | ARM® Cortex®-M4 | A/D 24x12b, D/A 2x12b | 4.89 | 5.69 | |||
STMicroelectronics STM32F469IIH6 | Internal | 114 | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | FLASH | 3.6 V | 1.7 V | 85 °C | -40 °C | 180 MHz | 2 MB | 32-Bit Single-Core | 201-UFBGA | 176+25UFBGA (10x10) | 384 K | Surface Mount | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG | ARM® Cortex®-M4 | A/D 24x12b, D/A 2x12b | |||||
STMicroelectronics STM32F469AEH6 | Internal | 114 | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | FLASH | 3.6 V | 1.7 V | 85 °C | -40 °C | 180 MHz | 512 KB | 32-Bit Single-Core | 169-UFBGA | 169-UFBGA (7x7) | 384 K | Surface Mount | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG | ARM® Cortex®-M4 | A/D 24x12b, D/A 2x12b | |||||
STMicroelectronics STM32F469ZGT6TR | Internal | 106 | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | FLASH | 3.6 V | 1.7 V | 85 °C | -40 °C | 180 MHz | 1 MB | 32-Bit Single-Core | 144-LQFP | 144-LQFP (20x20) | 384 K | Surface Mount | ARM® Cortex®-M4 | A/D 20x12b, D/A 2x12b | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG | |||||
STMicroelectronics STM32F469VIT6 | Internal | 71 | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | 12 b | 2, 14 | FLASH | 3.6 V | 1.7 V | 85 °C | -40 °C | 180 MHz | 2 MB | 32-Bit Single-Core | 100-LQFP | 100-LQFP (14x14) | 384 K | Surface Mount | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG | ARM® Cortex®-M4 | ||||
STMicroelectronics STM32F469ZET6 | Internal | 106 | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | FLASH | 3.6 V | 1.7 V | 85 °C | -40 °C | 180 MHz | 512 KB | 32-Bit Single-Core | 144-LQFP | 144-LQFP (20x20) | 384 K | Surface Mount | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG | ARM® Cortex®-M4 | A/D 20x12b, D/A 2x12b | |||||
STMicroelectronics STM32F469IEH6 | Internal | 114 | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | FLASH | 3.6 V | 1.7 V | 85 °C | -40 °C | 180 MHz | 512 KB | 32-Bit Single-Core | 201-UFBGA | 176+25UFBGA (10x10) | 384 K | Surface Mount | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG | ARM® Cortex®-M4 | A/D 24x12b, D/A 2x12b | |||||
STMicroelectronics STM32F469NEH6 | Internal | 161 | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | FLASH | 3.6 V | 1.7 V | 85 °C | -40 °C | 180 MHz | 512 KB | 32-Bit Single-Core | 216-TFBGA | 216-TFBGA (13x13) | 384 K | Surface Mount | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG | ARM® Cortex®-M4 | A/D 24x12b, D/A 2x12b | |||||
STMicroelectronics STM32F469BET6 | Internal | 161 | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | FLASH | 3.6 V | 1.7 V | 85 °C | -40 °C | 180 MHz | 512 KB | 32-Bit Single-Core | 208-LQFP | 208-LQFP (28x28) | 384 K | Surface Mount | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG | ARM® Cortex®-M4 | A/D 24x12b, D/A 2x12b |
Description
General part information
STM32F469 Series
The STM32F469xx devices are based on the high-performance Arm®Cortex®-M4 32-bit RISC core operating at a frequency of up to 180 MHz. The Cortex®-M4 core features a floating-point unit (FPU) single precision which supports all Arm®single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.
The STM32F469xx devices incorporate high-speed embedded memories (Flash memory up to 2 Mbytes, up to 384 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.
All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers, and a true random number generator (RNG). They also feature standard and advanced communication interfaces.
