STM32F469IIH6
ActiveHIGH-PERFORMANCE ADVANCED LINE, ARM CORTEX-M4 CORE WITH DSP AND FPU, 2 MBYTES OF FLASH MEMORY, 180 MHZ CPU, ART ACCELERATOR, CHROM-ART ACCELERATOR, FMC WITH SDRAM, DUAL QSPI, TFT, MIPI-DSI
Deep-Dive with AI
Search across all available documentation for this part.
STM32F469IIH6
ActiveHIGH-PERFORMANCE ADVANCED LINE, ARM CORTEX-M4 CORE WITH DSP AND FPU, 2 MBYTES OF FLASH MEMORY, 180 MHZ CPU, ART ACCELERATOR, CHROM-ART ACCELERATOR, FMC WITH SDRAM, DUAL QSPI, TFT, MIPI-DSI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STM32F469IIH6 |
|---|---|
| Connectivity [custom] | CANbus, USB, SPI, EBI/EMI, LINbus, SDIO, I2C, Ethernet, SAI, UART/USART, USB OTG, IrDA |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Data Converters | A/D 24x12b, D/A 2x12b |
| Mounting Type | Surface Mount |
| Number of I/O | 114 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |

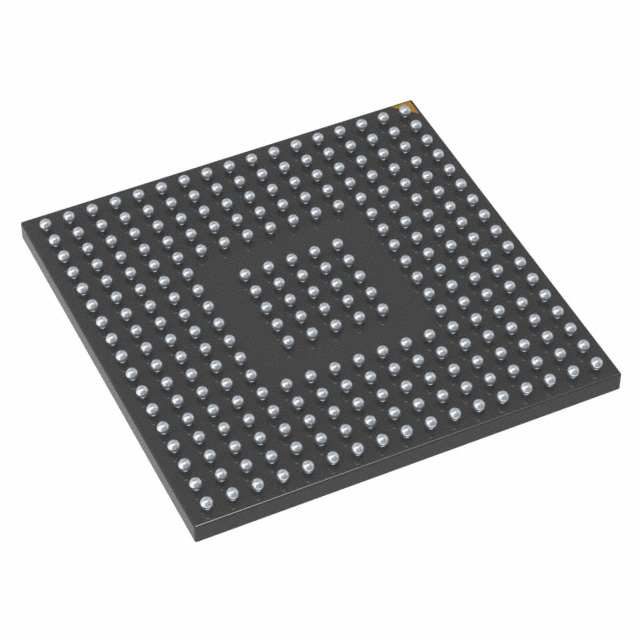

| Package / Case | 201-UFBGA |
| Peripherals | DMA, I2S, POR, WDT, Brown-out Detect/Reset, LCD, PWM |
| Program Memory Size | 2 MB |
| Program Memory Type | FLASH |
| RAM Size | 384 K |
| Speed | 180 MHz |
| Supplier Device Package | 176+25UFBGA (10x10) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow Electronics | N/A | 0 | $ 10.36 | |
| 1 | $ 6.95 | |||
| 10 | $ 6.74 | |||
| 25 | $ 6.50 | |||
| 100 | $ 6.43 | |||
| 500 | $ 6.37 | |||
| 1008 | $ 6.30 | |||
| Avnet Americas | N/A | 168 | $ 10.81 | |
| 170 | $ 10.55 | |||
| 340 | $ 10.42 | |||
| 840 | $ 10.30 | |||
| 1700 | $ 10.18 | |||
| DigiKey | N/A | 1 | $ 18.59 | |
| 10 | $ 14.81 | |||
| 25 | $ 13.86 | |||
| 80 | $ 12.96 | |||
| 230 | $ 12.36 | |||
| 440 | $ 12.07 | |||
| Digikey | Tray | 1 | $ 20.52 | |
| 10 | $ 14.94 | |||
| 25 | $ 13.51 | |||
| 80 | $ 12.13 | |||
| 230 | $ 11.20 | |||
| 440 | $ 10.81 | |||
| Future Electronics | N/A | 1 | $ 9.84 | |
| 4 | $ 9.84 | |||
| 15 | $ 9.84 | |||
| 25 | $ 9.84 | |||
| 50 | $ 9.84 | |||
| 1008 | $ 9.84 | |||
| Mouser Electronics | N/A | 1 | $ 10.82 | |
| 10 | $ 10.63 | |||
| 25 | $ 10.40 | |||
| 100 | $ 10.82 | |||
| 500 | $ 10.75 | |||
| STMicroelectronics | N/A | 1 | $ 10.60 | |
| 10 | $ 10.41 | |||
| 25 | $ 10.18 | |||
| 100 | $ 10.18 | |||
| 250 | $ 10.18 | |||
| 500 | $ 10.18 | |||
| Semour Electronics Co Ltd | N/A | 168 | $ 13.66 | |
| 336 | $ 13.55 | |||
| 672 | $ 13.43 | |||
| Verical | N/A | 1 | $ 6.95 | |
| 10 | $ 6.74 | |||
| 25 | $ 6.50 | |||
| 100 | $ 6.43 | |||
| 500 | $ 6.37 | |||
| 1008 | $ 6.30 | |||
STM32F469II Series
High-performance advanced line, Arm Cortex-M4 core with DSP and FPU, 2 Mbytes of Flash memory, 180 MHz CPU, ART Accelerator, Chrom-ART Accelerator, FMC with SDRAM, Dual QSPI, TFT, MIPI-DSI
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Program Memory Size | Speed | Mounting Type | Package / Case | Program Memory Type | Number of I/O | Oscillator Type | Supplier Device Package | Connectivity [custom] | Data Converters | Peripherals | Core Processor | Core Size | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | RAM Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STM32F469IIH6 | 85 °C | -40 °C | 2 MB | 180 MHz | Surface Mount | 201-UFBGA | FLASH | 114 | Internal | 176+25UFBGA (10x10) | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG | A/D 24x12b, D/A 2x12b | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | ARM® Cortex®-M4 | 32-Bit Single-Core | 3.6 V | 1.7 V | 384 K |
Description
General part information
STM32F469II Series
The STM32F469xx devices are based on the high-performance Arm®Cortex®-M4 32-bit RISC core operating at a frequency of up to 180 MHz. The Cortex®-M4 core features a floating-point unit (FPU) single precision which supports all Arm®single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.
The STM32F469xx devices incorporate high-speed embedded memories (Flash memory up to 2 Mbytes, up to 384 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.
All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers, and a true random number generator (RNG). They also feature standard and advanced communication interfaces.
