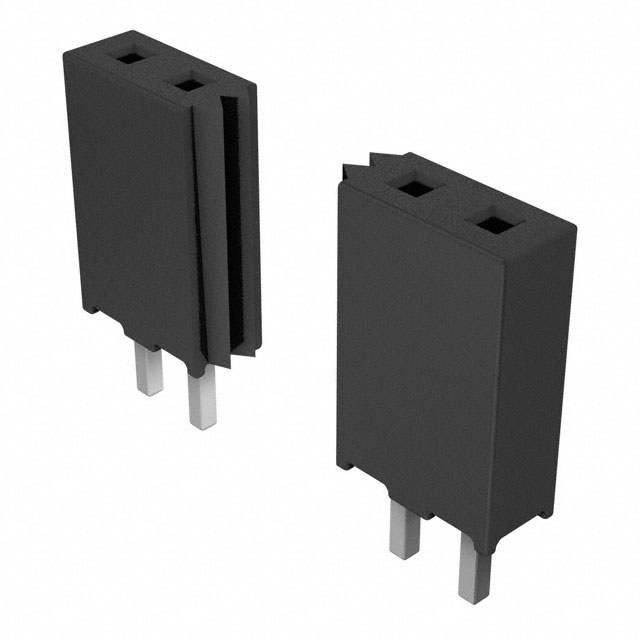

SQT-109-01-L-S

Active

Samtec Inc.

CONNECTOR, RCPT, 9POS, 1ROW, 2MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SQT-109-01-L-S

Active

Samtec Inc.

CONNECTOR, RCPT, 9POS, 1ROW, 2MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SQT-109-01-L-S

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	5.1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Style	Board to Board, Cable
Termination	Solder

SQT-109 Series

Part	Connector Type	Contact Shape	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Fastening Type	Current Rating (Amps)	Material Flammability Rating	Mounting Type	Contact Finish - Mating	Insulation Color	Insulation Height	Insulation Height	Number of Rows	Contact Type	Number of Positions	Style	Contact Length - Post	Contact Length - Post	Contact Material	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Insulation Height [custom]	Insulation Height [custom]
Samtec Inc. SQT-109-02-L-S	Receptacle	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	10 çin	0.25 çm	All	Tin	0.079 in	2 mm	Solder	Push-Pull	5.1 A	UL94 V-0	Through Hole	Gold	Black	6.35 mm	0.25 in	1	Forked	9	Board to Board Cable	15.24 mm	0.6 in	Phosphor Bronze
Samtec Inc. SQT-109-01-L-S	Receptacle	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	10 çin	0.25 çm	All	Tin	0.079 in	2 mm	Solder	Push-Pull	5.1 A	UL94 V-0	Through Hole	Gold	Black	6.35 mm	0.25 in	1	Forked	9	Board to Board Cable	2.29 mm	0.09 "	Phosphor Bronze
Samtec Inc. SQT-109-01-F-S	Receptacle	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C			All	Tin	0.079 in	2 mm	Solder	Push-Pull	5.1 A	UL94 V-0	Through Hole	Gold	Black	6.35 mm	0.25 in	1	Forked	9	Board to Board Cable	2.29 mm	0.09 "	Phosphor Bronze	Flash
Samtec Inc. SQT-109-01-F-D	Receptacle	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C			All	Tin	0.079 in	2 mm	Solder	Push-Pull	5.1 A	UL94 V-0	Through Hole	Gold	Black	6.35 mm	0.25 in	2	Forked	18	Board to Board Cable	2.29 mm	0.09 "	Phosphor Bronze	Flash	0.079 in	2 mm
Samtec Inc. SQT-109-01-L-Q	Receptacle	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	10 çin	0.25 çm	All	Tin	0.079 in	2 mm	Solder	Push-Pull	5.1 A	UL94 V-0	Through Hole	Gold	Black	6.35 mm	0.25 in		Forked	36	Board to Board Cable	2.29 mm	0.09 "	Phosphor Bronze		0.079 in	2 mm
Samtec Inc. SQT-109-01-L-D-018	Receptacle	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	10 çin	0.25 çm		Tin	0.079 in	2 mm	Solder	Push-Pull	5.1 A	UL94 V-0	Through Hole	Gold	Black	6.35 mm	0.25 in	2	Forked	18	Board to Board Cable	2.29 mm	0.09 "	Phosphor Bronze		0.079 in	2 mm	17
Samtec Inc. SQT-109-01-F-T-RA	Receptacle	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C			All	Tin	0.079 in	2 mm	Solder	Push-Pull	5.1 A	UL94 V-0	Through Hole Right Angle	Gold	Black	6 mm	0.236 in	3	Forked	27	Board to Board Cable	2.29 mm	0.09 "	Phosphor Bronze	Flash	0.079 in	2 mm
Samtec Inc. SQT-109-03-F-S	Receptacle	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C			All	Tin	0.079 in	2 mm	Solder	Push-Pull	5.1 A	UL94 V-0	Through Hole	Gold	Black	6.35 mm	0.25 in	1	Forked	9	Board to Board Cable	5.28 mm	0.208 in	Phosphor Bronze	Flash
Samtec Inc. SQT-109-01-L-S-005	Receptacle	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	10 çin	0.25 çm		Tin	0.079 in	2 mm	Solder	Push-Pull	5.1 A	UL94 V-0	Through Hole	Gold	Black	6.35 mm	0.25 in	1	Forked	9	Board to Board Cable	2.29 mm	0.09 "	Phosphor Bronze				8
Samtec Inc. SQT-109-01-S-D-RA	Receptacle	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	30 Áin	0.76 Ám	All	Tin	0.079 in	2 mm	Solder	Push-Pull	5.1 A	UL94 V-0	Through Hole Right Angle	Gold	Black			2	Forked	18	Board to Board Cable	2.29 mm	0.09 "	Phosphor Bronze		0.079 in	2 mm		0.157 in	4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.90
		10	$ 2.63
		100	$ 2.32
		500	$ 1.97
		1000	$ 1.68
		5000	$ 1.53
Newark	Each	1	$ 2.27
		10	$ 1.99
		50	$ 1.76
		100	$ 1.59
		250	$ 1.45
		500	$ 1.33
		1000	$ 1.23
		2500	$ 1.14

Description

General part information

SQT-109 Series

9 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
