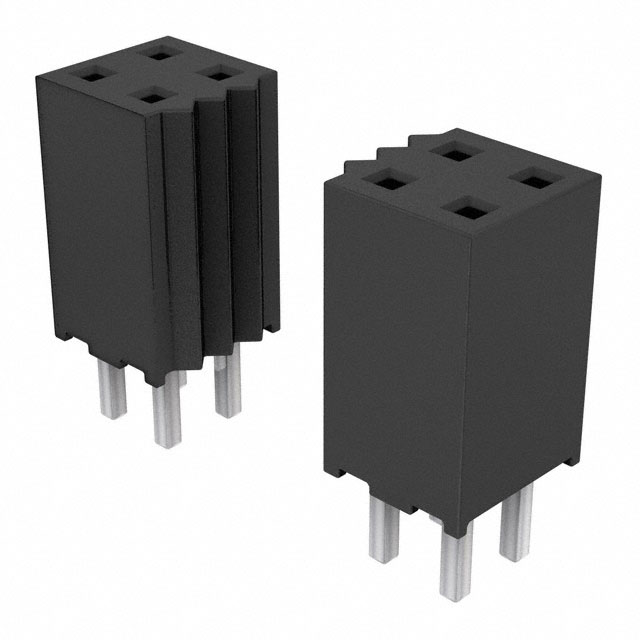

SQT-109-01-F-D
ActiveSamtec Inc.
CONN SOCKET STRIP SKT 18 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE TUBE
Deep-Dive with AI
Search across all available documentation for this part.
SQT-109-01-F-D
ActiveSamtec Inc.
CONN SOCKET STRIP SKT 18 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE TUBE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SQT-109-01-F-D |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Post | 0.09 " |
| Contact Length - Post | 2.29 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating (Amps) | 5.1 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 6.35 mm |
| Insulation Height | 0.25 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
SQT-109 Series
| Part | Connector Type | Contact Shape | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Contact Finish - Post | Pitch - Mating [x] | Pitch - Mating [x] | Termination | Fastening Type | Current Rating (Amps) | Material Flammability Rating | Mounting Type | Contact Finish - Mating | Insulation Color | Insulation Height | Insulation Height | Number of Rows | Contact Type | Number of Positions | Style | Contact Length - Post | Contact Length - Post | Contact Material | Contact Finish Thickness - Mating | Row Spacing - Mating | Row Spacing - Mating | Number of Positions Loaded | Insulation Height [custom] | Insulation Height [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Receptacle | Square | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | 10 çin | 0.25 çm | All | Tin | 0.079 in | 2 mm | Solder | Push-Pull | 5.1 A | UL94 V-0 | Through Hole | Gold | Black | 6.35 mm | 0.25 in | 1 | Forked | 9 | Board to Board Cable | 15.24 mm | 0.6 in | Phosphor Bronze | ||||||
Samtec Inc. | Receptacle | Square | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | 10 çin | 0.25 çm | All | Tin | 0.079 in | 2 mm | Solder | Push-Pull | 5.1 A | UL94 V-0 | Through Hole | Gold | Black | 6.35 mm | 0.25 in | 1 | Forked | 9 | Board to Board Cable | 2.29 mm | 0.09 " | Phosphor Bronze | ||||||
Samtec Inc. | Receptacle | Square | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | All | Tin | 0.079 in | 2 mm | Solder | Push-Pull | 5.1 A | UL94 V-0 | Through Hole | Gold | Black | 6.35 mm | 0.25 in | 1 | Forked | 9 | Board to Board Cable | 2.29 mm | 0.09 " | Phosphor Bronze | Flash | |||||||
Samtec Inc. | Receptacle | Square | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | All | Tin | 0.079 in | 2 mm | Solder | Push-Pull | 5.1 A | UL94 V-0 | Through Hole | Gold | Black | 6.35 mm | 0.25 in | 2 | Forked | 18 | Board to Board Cable | 2.29 mm | 0.09 " | Phosphor Bronze | Flash | 0.079 in | 2 mm | |||||
Samtec Inc. | Receptacle | Square | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | 10 çin | 0.25 çm | All | Tin | 0.079 in | 2 mm | Solder | Push-Pull | 5.1 A | UL94 V-0 | Through Hole | Gold | Black | 6.35 mm | 0.25 in | Forked | 36 | Board to Board Cable | 2.29 mm | 0.09 " | Phosphor Bronze | 0.079 in | 2 mm | |||||
Samtec Inc. | Receptacle | Square | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | 10 çin | 0.25 çm | Tin | 0.079 in | 2 mm | Solder | Push-Pull | 5.1 A | UL94 V-0 | Through Hole | Gold | Black | 6.35 mm | 0.25 in | 2 | Forked | 18 | Board to Board Cable | 2.29 mm | 0.09 " | Phosphor Bronze | 0.079 in | 2 mm | 17 | ||||
Samtec Inc. | Receptacle | Square | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | All | Tin | 0.079 in | 2 mm | Solder | Push-Pull | 5.1 A | UL94 V-0 | Through Hole Right Angle | Gold | Black | 6 mm | 0.236 in | 3 | Forked | 27 | Board to Board Cable | 2.29 mm | 0.09 " | Phosphor Bronze | Flash | 0.079 in | 2 mm | |||||
Samtec Inc. | Receptacle | Square | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | All | Tin | 0.079 in | 2 mm | Solder | Push-Pull | 5.1 A | UL94 V-0 | Through Hole | Gold | Black | 6.35 mm | 0.25 in | 1 | Forked | 9 | Board to Board Cable | 5.28 mm | 0.208 in | Phosphor Bronze | Flash | |||||||
Samtec Inc. | Receptacle | Square | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | 10 çin | 0.25 çm | Tin | 0.079 in | 2 mm | Solder | Push-Pull | 5.1 A | UL94 V-0 | Through Hole | Gold | Black | 6.35 mm | 0.25 in | 1 | Forked | 9 | Board to Board Cable | 2.29 mm | 0.09 " | Phosphor Bronze | 8 | ||||||
Samtec Inc. | Receptacle | Square | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | 30 Áin | 0.76 Ám | All | Tin | 0.079 in | 2 mm | Solder | Push-Pull | 5.1 A | UL94 V-0 | Through Hole Right Angle | Gold | Black | 2 | Forked | 18 | Board to Board Cable | 2.29 mm | 0.09 " | Phosphor Bronze | 0.079 in | 2 mm | 0.157 in | 4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SQT-109 Series
18 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
