YB25WCKW01-5F05-JF
ActiveNKK Switches

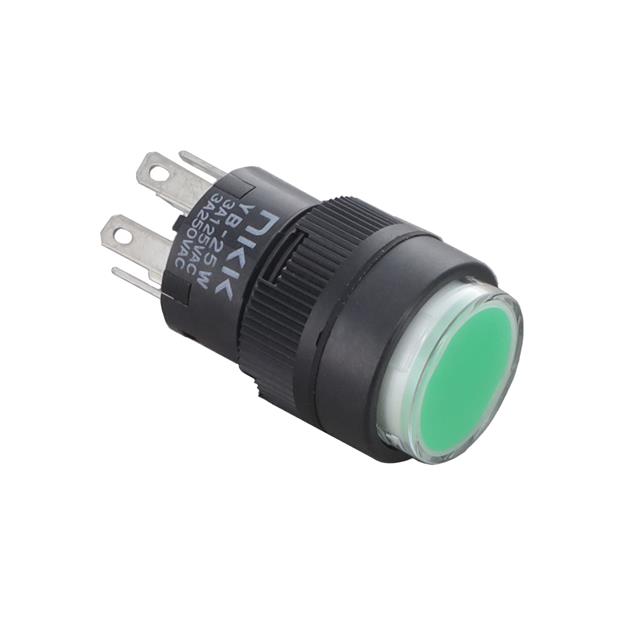

SWITCH PUSHBUTTON DPDT 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YB25WCKW01-5F05-JF
ActiveNKK Switches
SWITCH PUSHBUTTON DPDT 3A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YB25WCKW01-5F05-JF |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | DPDT |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 3 A |
| Electrical Life | 100000 Cycles |
| Features | Voltage Reduction Lighting |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 5 VDC |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | On-Mom |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
YB25WC Series
| Part | Illumination Type, Color | Actuator Marking | Termination Style | Termination Style | Termination Style | Voltage Rating - DC | Mounting Type | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Color - Actuator/Cap | Current Rating (Amps) | Mechanical Life | Voltage Rating - AC | Switch Function | Electrical Life | Features | Circuit | Illumination Voltage (Nominal) | Type | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | Green/Red LED | No Marking | 0.11 in | Quick Connect Solder | 2.8 mm | 28 V | Panel Mount Front | Button Round | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant | Clear | 0.4 VA | 1000000 Cycles | 28 V | On-Mom | 100000 Cycles | Voltage Reduction Lighting | DPDT | 24 V | Illuminated Standard | 16 mm |
NKK Switches | No Marking | 0.11 in | Quick Connect Solder | 2.8 mm | 30 V | Panel Mount Front | Plunger for Cap | 70 °C | -25 °C | IP65 - Dust Tight Water Resistant | 3 A | 1000000 Cycles | 125 V | On-Mom | 100000 Cycles | Voltage Reduction Lighting | DPDT | Standard | 16 mm | |||
NKK Switches | Green LED | No Marking | 0.11 in | Quick Connect Solder | 2.8 mm | 30 V | Panel Mount Front | Button Round | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant | Clear | 3 A | 1000000 Cycles | 125 V | On-Mom | 100000 Cycles | Voltage Reduction Lighting | DPDT | 5 VDC | Illuminated Standard | 16 mm |
NKK Switches | LED Red | No Marking | 0.11 in | Quick Connect Solder | 2.8 mm | 30 V | Panel Mount Front | Button Round | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant | Clear (Red Filter/Diffuser) | 3 A | 1000000 Cycles | 125 V | On-Mom | 100000 Cycles | Voltage Reduction Lighting | DPDT | 1.9 VDC | Illuminated Standard | 16 mm |
NKK Switches | LED Red | No Marking | 0.11 in | Quick Connect Solder | 2.8 mm | 28 V | Panel Mount Front | Button Round | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant | Clear (Red Filter/Diffuser) | 0.4 VA | 1000000 Cycles | 28 V | On-Mom | 100000 Cycles | Voltage Reduction Lighting | DPDT | 1.9 VDC | Illuminated Standard | 16 mm |
NKK Switches | No Marking | 0.11 in | Quick Connect Solder | 2.8 mm | 30 V | Panel Mount Front | Button Round | 70 °C | -25 °C | IP65 - Dust Tight Water Resistant | Red | 3 A | 1000000 Cycles | 125 V | On-Mom | 100000 Cycles | Voltage Reduction Lighting | DPDT | Standard | 16 mm | ||
NKK Switches | Amber LED | No Marking | 0.11 in | Quick Connect Solder | 2.8 mm | 30 V | Panel Mount Front | Button Round | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant | Clear | 3 A | 1000000 Cycles | 125 V | On-Mom | 100000 Cycles | Voltage Reduction Lighting | DPDT | 2 VDC | Illuminated Standard | 16 mm |
NKK Switches | No Marking | 0.11 in | Quick Connect Solder | 2.8 mm | 28 V | Panel Mount Front | Button Round | 70 °C | -25 °C | IP65 - Dust Tight Water Resistant | Red | 0.4 VA | 1000000 Cycles | 28 V | On-Mom | 100000 Cycles | Voltage Reduction Lighting | DPDT | Standard | 16 mm | ||
NKK Switches | LED Red | No Marking | 0.11 in | Quick Connect Solder | 2.8 mm | 28 V | Panel Mount Front | Button Round | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant | Clear | 0.4 VA | 1000000 Cycles | 28 V | On-Mom | 100000 Cycles | Voltage Reduction Lighting | DPDT | 5 VDC | Illuminated Standard | 16 mm |
NKK Switches | No Marking | Solder Lug | 28 V | Panel Mount Front | Button Round | 70 °C | -25 °C | IP65 - Dust Tight Water Resistant | Blue | 0.4 VA | 1000000 Cycles | 28 V | On-Mom | 100000 Cycles | Voltage Reduction Lighting | DPDT | Standard | 16 mm |
