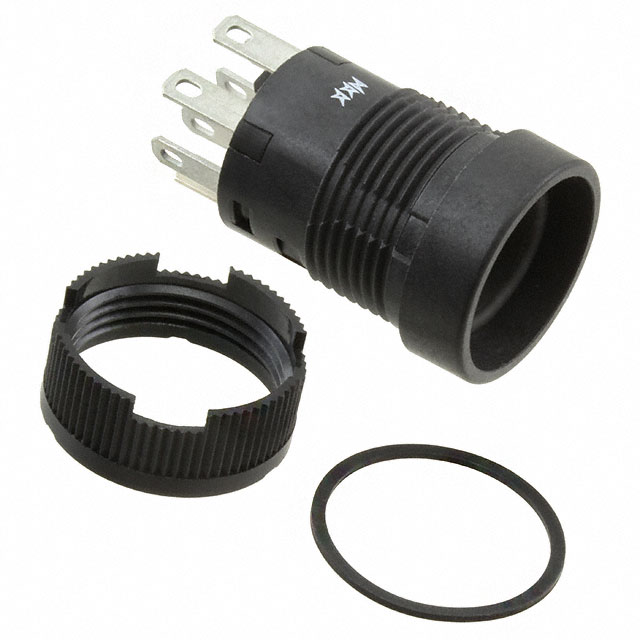

Specification	YB25WCKW01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating	3 A
Electrical Life (Cycles)	100000 Cycles
Features	Voltage Reduction Lighting
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	16 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Switch Function	On-Mom
Termination Style	Quick Connect, Solder
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB25WC Series

Part	Quick Connect Size (0.110")	Termination Style	Current Rating	Type	Switch Function	Features	Operating Temperature (Min)	Operating Temperature (Max)	Illumination Voltage (Nominal)	Actuator Type	Mounting Type	Voltage Rating - DC	Voltage Rating - AC	Circuit	Ingress Protection IP Rating	Ingress Protection Description	Color	Illumination Type	Panel Cutout Diameter	Panel Cutout Shape	Color - Actuator/Cap	Actuator Marking	Electrical Life (Cycles)	Mechanical Life (Cycles)
NKK Switches YB25WCKG01-1CF24-JF	0.11 in	Quick Connect Solder	0.4 VA	Illuminated Standard	On-Mom	Voltage Reduction Lighting	-25 °C	50 °C	24 V	Button Round	Front Panel Mount	28 V	28 V	DPDT	IP65	Dust Tight Water Resistant	Green Red	LED	16 mm	Circular	Clear (Green Filter/Diffuser)	No Marking	100000 Cycles	1000000 Cycles
NKK Switches YB25WCKW01	0.11 in	Quick Connect Solder	3 A	Standard	On-Mom	Voltage Reduction Lighting	-25 °C	70 °C		Plunger for Cap	Front Panel Mount	30 V	125 V	DPDT	IP65	Dust Tight Water Resistant			16 mm	Circular		No Marking	100000 Cycles	1000000 Cycles
NKK Switches YB25WCKG01-5F12-JF	0.11 in	Quick Connect Solder	0.4 VA	Illuminated Standard	On-Mom	Voltage Reduction Lighting	-25 °C	50 °C	12 V	Button Round	Front Panel Mount	28 V	28 V	DPDT	IP65	Dust Tight Water Resistant	Green	LED	16 mm	Circular	Clear (Green Filter/Diffuser)	No Marking	100000 Cycles	1000000 Cycles
NKK Switches YB25WCKW01-5F05-JF	0.11 in	Quick Connect Solder	3 A	Illuminated Standard	On-Mom	Voltage Reduction Lighting	-25 °C	50 °C	5 V	Button Round	Front Panel Mount	30 V	125 V	DPDT	IP65	Dust Tight Water Resistant	Green	LED	16 mm	Circular	Clear (Green Filter/Diffuser)	No Marking	100000 Cycles	1000000 Cycles
NKK Switches YB25WCKW01-5C24-JC	0.11 in	Quick Connect Solder	3 A	Illuminated Standard	On-Mom		-25 °C	50 °C	24 V	Button Round	Front Panel Mount	30 V	125 V	DPDT	IP65	Dust Tight Water Resistant	Red	LED	16 mm	Circular	Clear (Red Filter/Diffuser)		100000 Cycles	1000000 Cycles
NKK Switches YB25WCKW01-6G-JB	0.11 in	Quick Connect Solder	3 A	Illuminated Standard	On-Mom	Voltage Reduction Lighting	-25 °C	50 °C	3.6 VDC	Button Round	Front Panel Mount	30 V	125 V	DPDT	IP65	Dust Tight Water Resistant	Blue	LED	16 mm	Circular	Clear (White Filter/Diffuser)	No Marking	100000 Cycles	1000000 Cycles
NKK Switches YB25WCKW01-CB	0.11 in	Quick Connect Solder	3 A	Standard	On-Mom	Voltage Reduction Lighting	-25 °C	70 °C		Button Round	Front Panel Mount	30 V	125 V	DPDT	IP65	Dust Tight Water Resistant			16 mm	Circular	Red (White Filter/Diffuser)	No Marking	100000 Cycles	1000000 Cycles
NKK Switches YB25WCKW01-5D-JD	0.11 in	Quick Connect Solder	3 A	Illuminated Standard	On-Mom	Voltage Reduction Lighting	-25 °C	50 °C	2 VDC	Button Round	Front Panel Mount	30 V	125 V	DPDT	IP65	Dust Tight Water Resistant	Amber	LED	16 mm	Circular	Clear (Amber Filter/Diffuser)	No Marking	100000 Cycles	1000000 Cycles
NKK Switches YB25WCKG01-CB	0.11 in	Quick Connect Solder	0.4 VA	Standard	On-Mom	Voltage Reduction Lighting	-25 °C	70 °C		Button Round	Front Panel Mount	28 V	28 V	DPDT	IP65	Dust Tight Water Resistant			16 mm	Circular	Red (White Filter/Diffuser)	No Marking	100000 Cycles	1000000 Cycles
NKK Switches YB25WCKW01-5F-JF	0.11 in	Quick Connect Solder	3 A	Illuminated Standard	On-Mom	Voltage Reduction Lighting	-25 °C	50 °C	2.2 VDC	Button Round	Front Panel Mount	30 V	125 V	DPDT	IP65	Dust Tight Water Resistant	Green	LED	16 mm	Circular	Clear (Green Filter/Diffuser)	No Marking	100000 Cycles	1000000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

YB25WCKW01 | Datasheet

Datasheet
