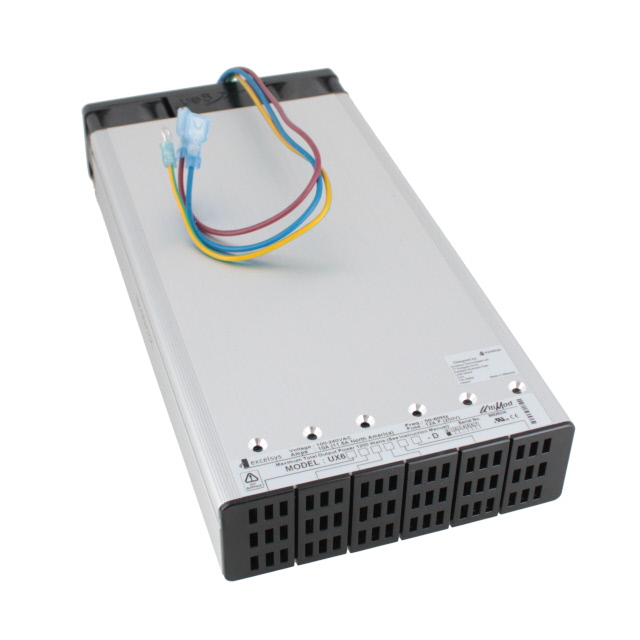

UX6-D0

Active

EXCELSYS / Advanced Energy

CONFIGURABLE POWER SUPPLY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UX6-D0

Active

EXCELSYS / Advanced Energy

CONFIGURABLE POWER SUPPLY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UX6-D0	UX6 Series

Approval Agency	CE, cURus	CE, CE, cURus
Efficiency	90 %	90 - 91 %
Features	Fan Fail, Temperature Alarm	Fan Fail, Temperature Alarm, Ruggedized, Reverse Fan, Conformal Coating
Height [z]	40.4 mm	40.4 mm
Height [z]	1.59 in	1.59 in
Number of Positions	6	6
Power (Watts)	1200 W	1200 W
Size / Dimension [x]	260 mm	260 mm
Size / Dimension [x]	10.24 "	10.24 "
Size / Dimension [y]	5 "	5 "
Size / Dimension [y]	127 mm	127 mm
Type	Medical	Medical
Voltage - Input	-	264 - 380 VAC
Voltage - Input	-	85 - 120 VDC
Voltage - Isolation	4000 V	4000 V

UX6 Series

CONFIG POWER CHASSIS

Part	Features	Type	Height [z]	Height [z]	Number of Positions	Approval Agency	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Isolation	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]
EXCELSYS / Advanced Energy UX6C02	Fan Fail, Temperature Alarm	Medical	40.4 mm	1.59 in	6	CE	1200 W	260 mm	10.24 "	5 "	127 mm	4000 V	90 %
EXCELSYS / Advanced Energy UX6S0	Conformal Coating, Fan Fail, Reverse Fan, Ruggedized, Temperature Alarm	Medical	40.4 mm	1.59 in	6	CE	1200 W	260 mm	10.24 "	5 "	127 mm	4000 V	91 %	264 VAC, 380 VDC	85 VAC, 120 VDC
EXCELSYS / Advanced Energy UX6R00	Fan Fail, Temperature Alarm	Medical	40.4 mm	1.59 in	6	CE, cURus	1200 W	260 mm	10.24 "	5 "	127 mm	4000 V	90 %
EXCELSYS / Advanced Energy UX6CD0	Fan Fail, Temperature Alarm	Medical	40.4 mm	1.59 in	6	CE, cURus	1200 W	260 mm	10.24 "	5 "	127 mm	4000 V	90 %
EXCELSYS / Advanced Energy UX6-04	Fan Fail, Temperature Alarm	Medical	40.4 mm	1.59 in	6	CE	1200 W	260 mm	10.24 "	5 "	127 mm	4000 V	90 %
EXCELSYS / Advanced Energy UX6SD0	Fan Fail, Temperature Alarm	Medical	40.4 mm	1.59 in	6	CE, cURus	1200 W	260 mm	10.24 "	5 "	127 mm	4000 V	90 %
EXCELSYS / Advanced Energy UX6-D0	Fan Fail, Temperature Alarm	Medical	40.4 mm	1.59 in	6	CE, cURus	1200 W	260 mm	10.24 "	5 "	127 mm	4000 V	90 %
EXCELSYS / Advanced Energy UX6RD0	Conformal Coating, Fan Fail, Reverse Fan, Ruggedized, Temperature Alarm	Medical	40.4 mm	1.59 in	6	CE	1200 W	260 mm	10.24 "	5 "	127 mm	4000 V	91 %	264 VAC, 380 VDC	85 VAC, 120 VDC
EXCELSYS / Advanced Energy UX6CD2	Fan Fail, Temperature Alarm	Medical	40.4 mm	1.59 in	6	CE	1200 W	260 mm	10.24 "	5 "	127 mm	4000 V	90 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 303.13
		5	$ 280.24
		10	$ 270.92
		25	$ 265.91

Description

General part information

UX6 Series

1200 W 6 Slot AC DC Configurable Power Supply Chassis
