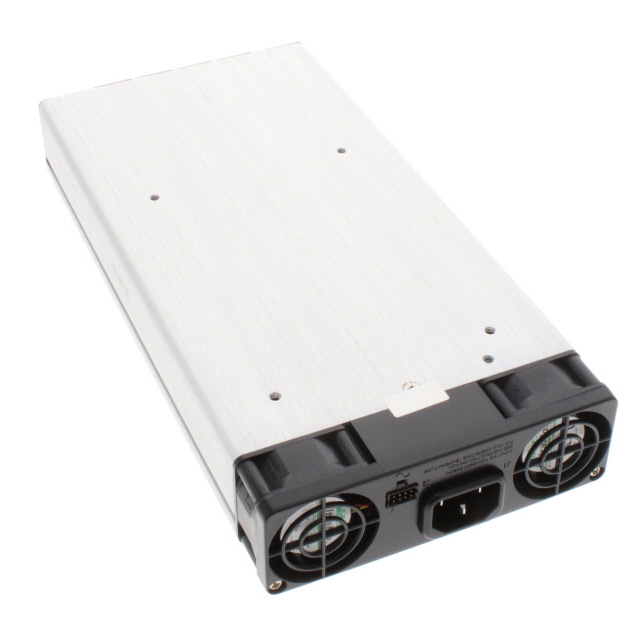

UX6C02

Active

EXCELSYS / Advanced Energy

CONFIG POWER CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UX6C02

Active

EXCELSYS / Advanced Energy

CONFIG POWER CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 341.85
		5	$ 303.32
		10	$ 288.04
		25	$ 268.96

Description

General part information

UX6 Series

1200 W 6 Slot AC DC Configurable Power Supply Chassis

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UX6C02	UX6 Series

Approval Agency	CE	CE, CE, cURus
Efficiency	90 %	90 - 91 %
Features	Fan Fail, Temperature Alarm	Fan Fail, Temperature Alarm, Ruggedized, Reverse Fan, Conformal Coating
Height [z]	40.4 mm	40.4 mm
Height [z]	1.59 in	1.59 in
Number of Positions	6	6
Power (Watts)	1200 W	1200 W
Size / Dimension [x]	260 mm	260 mm
Size / Dimension [x]	10.24 "	10.24 "
Size / Dimension [y]	5 "	5 "
Size / Dimension [y]	127 mm	127 mm
Type	Medical	Medical
Voltage - Input	-	264 - 380 VAC
Voltage - Input	-	85 - 120 VDC
Voltage - Isolation	4000 V	4000 V

UX6 Series

CONFIG POWER CHASSIS

Part	Features	Type	Height [z]	Height [z]	Number of Positions	Approval Agency	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Isolation	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]
EXCELSYS / Advanced Energy UX6C02	Fan Fail, Temperature Alarm	Medical	40.4 mm	1.59 in	6	CE	1200 W	260 mm	10.24 "	5 "	127 mm	4000 V	90 %
EXCELSYS / Advanced Energy UX6S0	Conformal Coating, Fan Fail, Reverse Fan, Ruggedized, Temperature Alarm	Medical	40.4 mm	1.59 in	6	CE	1200 W	260 mm	10.24 "	5 "	127 mm	4000 V	91 %	264 VAC, 380 VDC	85 VAC, 120 VDC
EXCELSYS / Advanced Energy UX6R00	Fan Fail, Temperature Alarm	Medical	40.4 mm	1.59 in	6	CE, cURus	1200 W	260 mm	10.24 "	5 "	127 mm	4000 V	90 %
EXCELSYS / Advanced Energy UX6CD0	Fan Fail, Temperature Alarm	Medical	40.4 mm	1.59 in	6	CE, cURus	1200 W	260 mm	10.24 "	5 "	127 mm	4000 V	90 %
EXCELSYS / Advanced Energy UX6-04	Fan Fail, Temperature Alarm	Medical	40.4 mm	1.59 in	6	CE	1200 W	260 mm	10.24 "	5 "	127 mm	4000 V	90 %
EXCELSYS / Advanced Energy UX6SD0	Fan Fail, Temperature Alarm	Medical	40.4 mm	1.59 in	6	CE, cURus	1200 W	260 mm	10.24 "	5 "	127 mm	4000 V	90 %
EXCELSYS / Advanced Energy UX6-D0	Fan Fail, Temperature Alarm	Medical	40.4 mm	1.59 in	6	CE, cURus	1200 W	260 mm	10.24 "	5 "	127 mm	4000 V	90 %
EXCELSYS / Advanced Energy UX6RD0	Conformal Coating, Fan Fail, Reverse Fan, Ruggedized, Temperature Alarm	Medical	40.4 mm	1.59 in	6	CE	1200 W	260 mm	10.24 "	5 "	127 mm	4000 V	91 %	264 VAC, 380 VDC	85 VAC, 120 VDC
EXCELSYS / Advanced Energy UX6CD2	Fan Fail, Temperature Alarm	Medical	40.4 mm	1.59 in	6	CE	1200 W	260 mm	10.24 "	5 "	127 mm	4000 V	90 %
