BQ4050EVM-561
Active1 SERIES, 2 SERIES, 3 SERIES, AN
Deep-Dive with AI
Search across all available documentation for this part.

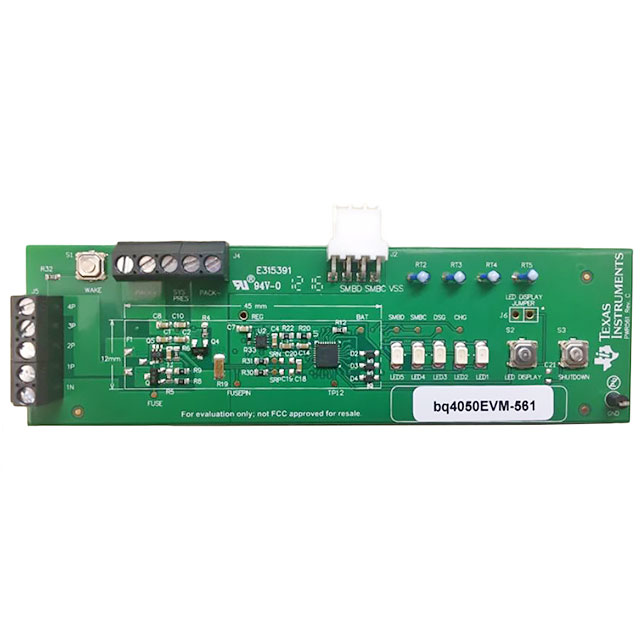

BQ4050EVM-561
Active1 SERIES, 2 SERIES, 3 SERIES, AN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ4050EVM-561 | BQ4050 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Fault Protection | - | Over Temperature, Over/Under Voltage, Over Current, Short Circuit |
| Function | Fuel Gauge | Multi-Function Controller, Fuel Gauge |
| Interface | - | SMBus |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 4 |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 32-VFQFN Exposed Pad |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 32-VQFN (4x4) |
| Type | Power Management | Power Management |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Bulk | 1 | $ 94.80 | |
| Digikey | Bulk | 1 | $ 94.80 | |
| Mouser Electronics | N/A | 1 | $ 94.81 | |
BQ4050 Series
1-4 series CEDV battery fuel (gas) gauge
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Function | Mounting Type | Number of Cells [Max] [custom] | Number of Cells [Min] [custom] | Supplier Device Package | Interface | Battery Chemistry | Package / Case | Fault Protection | Supplied Contents | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ4050RSMR | 85 °C | -40 °C | Multi-Function Controller | Surface Mount | 4 | 1 | 32-VQFN (4x4) | SMBus | Lithium Ion/Polymer | 32-VFQFN Exposed Pad | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | ||
Texas Instruments BQ4050EVM-561 | Fuel Gauge | Board(s) | Power Management | ||||||||||
Texas Instruments BQ4050RSMT | 85 °C | -40 °C | Multi-Function Controller | Surface Mount | 4 | 1 | 32-VQFN (4x4) | SMBus | Lithium Ion/Polymer | 32-VFQFN Exposed Pad | Over Current, Over Temperature, Over/Under Voltage, Short Circuit |
Description
General part information
BQ4050 Series
The Texas Instruments bq4050 device, incorporating Compensated End-of-Discharge Voltage (CEDV) technology, is a highly integrated, accurate, 1-series to 4-series cell gas gauge and protection solution, enabling autonomous charger control and cell balancing.
The bq4050 device provides a fully integrated pack-based solution with a flash programmable custom reduced instruction-set CPU (RISC), safety protection, and authentication for Li-Ion and Li-Polymer battery packs.
The bq4050 gas gauge communicates via an SMBus-compatible interface and combines an ultra-low power, high-speed TI bqBMP processor, high-accuracy analog measurement capabilities, integrated flash memory, an array of peripheral and communication ports, an N-CH FET drive, and a SHA-1 Authentication transform responder into a complete, high-performance battery management solution.
