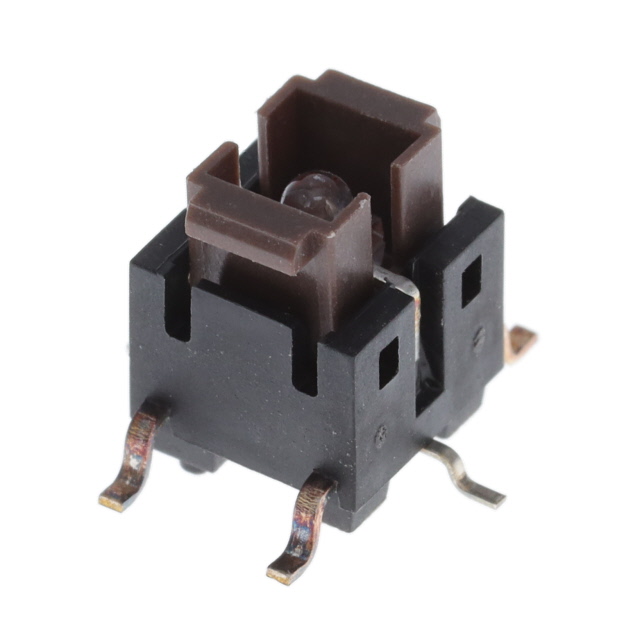

FSMIJM62BA04
ActiveTE Connectivity Raychem Cable Protection
6X6 ILL TACT SMT 160GF HI SOFT ORANGE
Deep-Dive with AI
Search across all available documentation for this part.
FSMIJM62BA04
ActiveTE Connectivity Raychem Cable Protection
6X6 ILL TACT SMT 160GF HI SOFT ORANGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FSMIJM62BA04 |
|---|---|
| Actuator Material | Thermoplastic |
| Actuator Orientation | Top Actuated |
| Actuator Type | Plunger for Cap |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Features | Tactile/Audible Feedback |
| Illumination | Illuminated |
| Illumination Type, Color | LED, Orange |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Outline [x] | 6 mm |
| Outline [y] | 6 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.2 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.94 | |
| 10 | $ 1.89 | |||
| 25 | $ 1.71 | |||
| 100 | $ 1.49 | |||
| Digi-Reel® | 1 | $ 1.94 | ||
| 10 | $ 1.89 | |||
| 25 | $ 1.71 | |||
| 100 | $ 1.49 | |||
| Tape & Reel (TR) | 450 | $ 0.96 | ||
Description
General part information
ALCOSWITCH FSMIJ Series
50 mA Tactile Switch, Rectangular Actuator, Off (On), Brass, Silver Contact Plating, ALCOSWITCH FSMIJ
