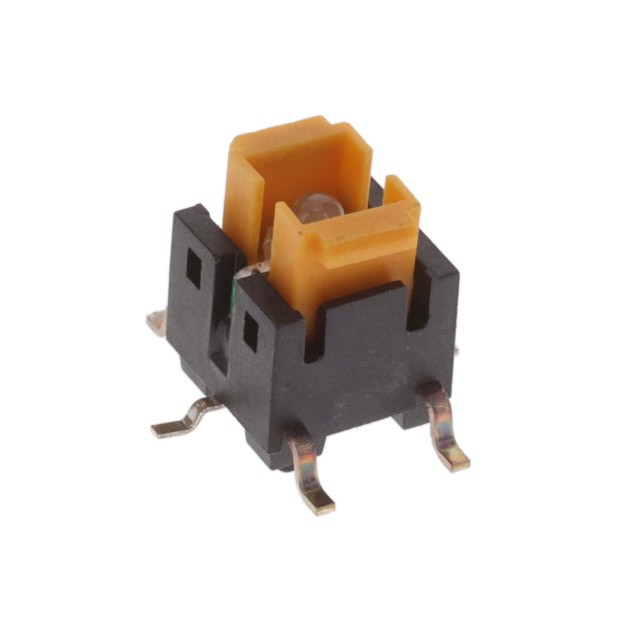

FSMIJM65BG04
ActiveTE Connectivity Raychem Cable Protection
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
FSMIJM65BG04
ActiveTE Connectivity Raychem Cable Protection
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FSMIJM65BG04 |
|---|---|
| Actuator Material | Thermoplastic |
| Actuator Orientation | Top Actuated |
| Actuator Type | Plunger for Cap |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Features | Tactile/Audible Feedback |
| Illumination | Illuminated |
| Illumination Type, Color | Green, Yellow, LED |
| Mechanical Life | 200000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 520 gf |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Outline [x] | 6 mm |
| Outline [y] | 6 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.2 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.13 | |
| 10 | $ 2.07 | |||
| 25 | $ 1.88 | |||
| 100 | $ 1.64 | |||
| Digi-Reel® | 1 | $ 2.13 | ||
| 10 | $ 2.07 | |||
| 25 | $ 1.88 | |||
| 100 | $ 1.64 | |||
| Tape & Reel (TR) | 450 | $ 1.40 | ||
| 900 | $ 1.31 | |||
| 1350 | $ 1.26 | |||
| 2250 | $ 1.20 | |||
| 3150 | $ 1.16 | |||
| 4500 | $ 1.12 | |||
Description
General part information
ALCOSWITCH FSMIJ Series
Tactile Switch SPST-NO Top Actuated Surface Mount
Documents
Technical documentation and resources
No documents available
