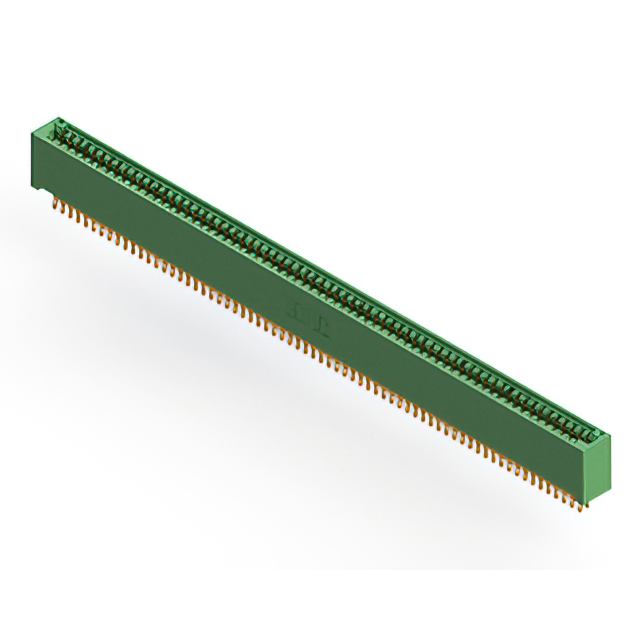

Specification	345-136-555-201

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Straddle Mount, Board Edge
Number of Positions	136, 68
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2 rows

345-136 Series

...

Part	Number of Rows	Gender	Contact Finish Thickness	Contact Type	Read Out	Flange Feature	Card Type	Operating Temperature (Min)	Operating Temperature (Max)	Color	Contact Material	Termination	Mounting Type	Number of Positions	Pitch	Contact Finish	Card Thickness (Min)	Card Thickness (Max)	Features	Material - Insulation	Termination Rows	Flange Feature Diameter
EDAC Inc. 345-136-555-508	2	Female	10 Ąin	Cantilever	Dual	4-40 Threaded Insert Top Mount Opening	Dual Edge Non Specified	-40 °C	105 °C	Green	Copper Alloy	Solder Eyelet(s)	Board Edge Straddle Mount	68 136	0.1 in	Gold	0.054 in	0.07 in	Card Extender	Polyester Thermoplastic	2 rows
EDAC Inc. 345-136-559-804	2	Female	10 Ąin	Cantilever	Dual	Top Mount Opening Unthreaded	Dual Edge Non Specified	-40 °C	105 °C	Green	Copper Alloy	Wire Wrap	Right Angle Through Hole	68 136	0.1 in	Gold	0.054 in	0.07 in		Polyester Thermoplastic	2 rows	0.156 in
EDAC Inc. 345-136-500-578	2	Female	10 Ąin	Cantilever	Dual	4-40 Threaded Insert Top Mount Opening	Dual Edge Non Specified	-40 °C	105 °C	Green	Copper Alloy	Solder Eyelet(s)	Through Hole	68 136	0.1 in	Gold	0.054 in	0.07 in	Card Guides	Polyester Thermoplastic	2 rows
EDAC Inc. 345-136-555-503	2	Female	10 Ąin	Cantilever	Dual	Floating Bobbin Top Mount Opening	Dual Edge Non Specified	-40 °C	105 °C	Green	Copper Alloy	Solder Eyelet(s)	Board Edge Straddle Mount	68 136	0.1 in	Gold	0.054 in	0.07 in	Card Extender	Polyester Thermoplastic	2 rows	0.116 in
EDAC Inc. 345-136-560-578	2	Female	10 Ąin	Cantilever	Dual	4-40 Threaded Insert Top Mount Opening	Dual Edge Non Specified	-40 °C	105 °C	Green	Copper Alloy	Solder	Board Edge Straddle Mount	68 136	0.1 in	Gold	0.054 in	0.07 in	Card Extender Card Guides	Polyester Thermoplastic	2 rows
EDAC Inc. 345-136-556-278	2	Female	10 Ąin	Cantilever	Dual	4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	-40 °C	105 °C	Green	Copper Alloy	Solder	Board Edge Straddle Mount	68 136	0.1 in	Gold	0.054 in	0.07 in	Card Extender Card Guides	Polyester Thermoplastic	2 rows
EDAC Inc. 345-136-555-201	2	Female	10 Ąin	Cantilever	Dual		Dual Edge Non Specified	-40 °C	105 °C	Green	Copper Alloy	Solder Eyelet(s)	Board Edge Straddle Mount	68 136	0.1 in	Gold	0.054 in	0.07 in	Card Extender	Polyester Thermoplastic	2 rows
EDAC Inc. 345-136-540-858	2	Female	10 Ąin	Cantilever	Dual	4-40 Threaded Insert Top Mount Opening	Dual Edge Non Specified	-40 °C	105 °C	Green	Copper Alloy	Wire Wrap	Through Hole	68 136	0.1 in	Gold	0.054 in	0.07 in	Card Guides	Polyester Thermoplastic	2 rows
EDAC Inc. 345-136-559-888	2	Female	10 Ąin	Cantilever	Dual	4-40 Threaded Insert Top Mount Opening	Dual Edge Non Specified	-40 °C	105 °C	Green	Copper Alloy	Wire Wrap	Right Angle Through Hole	68 136	0.1 in	Gold	0.054 in	0.07 in	Card Guides	Polyester Thermoplastic	2 rows
EDAC Inc. 345-136-523-288	2	Female	10 Ąin	Cantilever	Dual	4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	-40 °C	105 °C	Green	Copper Alloy	Solder	Through Hole	68 136	0.1 in	Gold	0.054 in	0.07 in	Card Guides	Polyester Thermoplastic	2 rows
