345-136-559-888

Active

EDAC Inc.

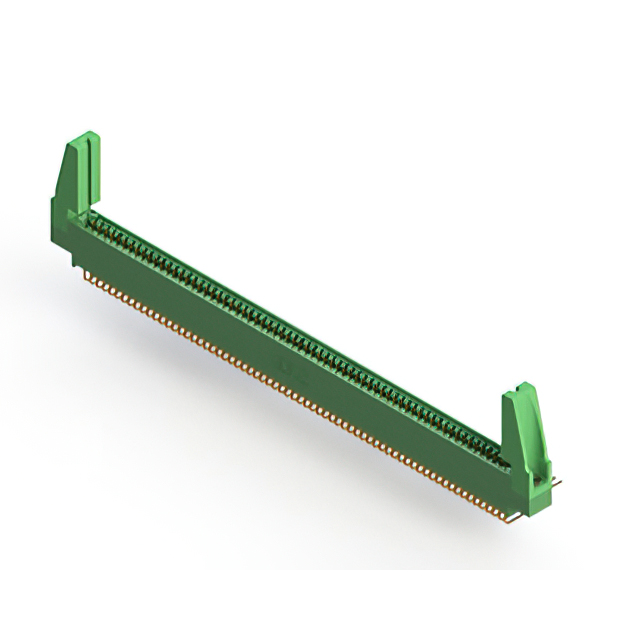

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 136 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

345-136-559-888

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 136 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-136-559-888

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	136
Number of Positions/Bay/Row [custom]	68
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

345-136 Series

...

Part	Number of Rows	Contact Material	Termination Rows	Termination	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Contact Type	Mounting Type	Flange Feature	Features	Gender	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Read Out	Pitch [x]	Pitch [x]	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 345-136-555-508	2	Copper Alloy	2	Solder Eyelet(s)	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	Board Edge Straddle Mount	4-40 Threaded Insert Top Mount Opening	Card Extender	Female	10 Áin	0.25 Ám	68	Gold	-40 °C	105 ░C	Non Specified - Dual Edge	Dual	2.54 mm	0.1 in	136
EDAC Inc. 345-136-559-804	2	Copper Alloy	2	Wire Wrap	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	Through Hole Right Angle	Top Mount Opening Unthreaded		Female	10 Áin	0.25 Ám	68	Gold	-40 °C	105 ░C	Non Specified - Dual Edge	Dual	2.54 mm	0.1 in	136	0.156 in	3.96 mm
EDAC Inc. 345-136-500-578	2	Copper Alloy	2	Solder Eyelet(s)	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	Through Hole	4-40 Threaded Insert Top Mount Opening	Card Guides	Female	10 Áin	0.25 Ám	68	Gold	-40 °C	105 ░C	Non Specified - Dual Edge	Dual	2.54 mm	0.1 in	136
EDAC Inc. 345-136-555-503	2	Copper Alloy	2	Solder Eyelet(s)	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	Board Edge Straddle Mount	Floating Bobbin Top Mount Opening	Card Extender	Female	10 Áin	0.25 Ám	68	Gold	-40 °C	105 ░C	Non Specified - Dual Edge	Dual	2.54 mm	0.1 in	136	0.116 in	2.95 mm
EDAC Inc. 345-136-560-578	2	Copper Alloy	2	Solder	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	Board Edge Straddle Mount	4-40 Threaded Insert Top Mount Opening		Female	10 Áin	0.25 Ám	68	Gold	-40 °C	105 ░C	Non Specified - Dual Edge	Dual	2.54 mm	0.1 in	136
EDAC Inc. 345-136-558-204	2	Copper Alloy	2	Wire Wrap	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	Through Hole Right Angle	Flush Mount Top Opening Unthreaded		Female	10 Áin	0.25 Ám	68	Gold	-40 °C	105 ░C	Non Specified - Dual Edge	Dual	2.54 mm	0.1 in	136	0.156 in	3.96 mm
EDAC Inc. 345-136-556-278	2	Copper Alloy	2	Solder	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	Board Edge Straddle Mount	4-40 Flush Mount Threaded Insert Top Opening		Female	10 Áin	0.25 Ám	68	Gold	-40 °C	105 ░C	Non Specified - Dual Edge	Dual	2.54 mm	0.1 in	136
EDAC Inc. 345-136-555-201	2	Copper Alloy	2	Solder Eyelet(s)	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	Board Edge Straddle Mount		Card Extender	Female	10 Áin	0.25 Ám	68	Gold	-40 °C	105 ░C	Non Specified - Dual Edge	Dual	2.54 mm	0.1 in	136
EDAC Inc. 345-136-540-858	2	Copper Alloy	2	Wire Wrap	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	Through Hole	4-40 Threaded Insert Top Mount Opening	Card Guides	Female	10 Áin	0.25 Ám	68	Gold	-40 °C	105 ░C	Non Specified - Dual Edge	Dual	2.54 mm	0.1 in	136
EDAC Inc. 345-136-559-888	2	Copper Alloy	2	Wire Wrap	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	Through Hole Right Angle	4-40 Threaded Insert Top Mount Opening	Card Guides	Female	10 Áin	0.25 Ám	68	Gold	-40 °C	105 ░C	Non Specified - Dual Edge	Dual	2.54 mm	0.1 in	136

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 21.63
Newark	Each	1	$ 24.17
		100	$ 15.95
		250	$ 14.16
		500	$ 12.22
		1000	$ 9.78

Description

General part information

345-136 Series

136 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
