M50-3651342R
ActiveHarwin Inc.

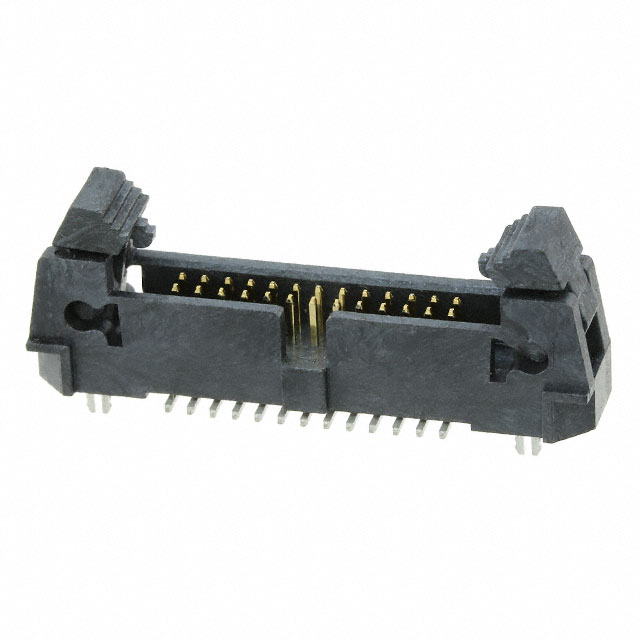

PIN HEADER, EJECTOR, WIRE-TO-BOARD, 1.27 MM, 2 ROWS, 26 CONTACTS, SURFACE MOUNT, ARCHER M50 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
M50-3651342R
ActiveHarwin Inc.
PIN HEADER, EJECTOR, WIRE-TO-BOARD, 1.27 MM, 2 ROWS, 26 CONTACTS, SURFACE MOUNT, ARCHER M50 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M50-3651342R |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Mating | 3.05 mm |
| Contact Length - Mating | 0.12 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1.75 A |
| Fastening Type | Latch Lock/Eject Hooks |
| Features | Pick and Place, Board Lock, Keying Slot |
| Insulation Color | Black |
| Insulation Height | 8.25 mm |
| Insulation Height | 0.325 in |
| Mated Stacking Heights | 11.85 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.97 | |
| 10 | $ 2.69 | |||
| 100 | $ 2.37 | |||
| Digi-Reel® | 1 | $ 2.97 | ||
| 10 | $ 2.69 | |||
| 100 | $ 2.37 | |||
| Tape & Reel (TR) | 250 | $ 2.09 | ||
Description
General part information
M50-365 Series
Connector Header Surface Mount 26 position 0.050" (1.27mm)
