M50-3650742R
ActiveHarwin Inc.

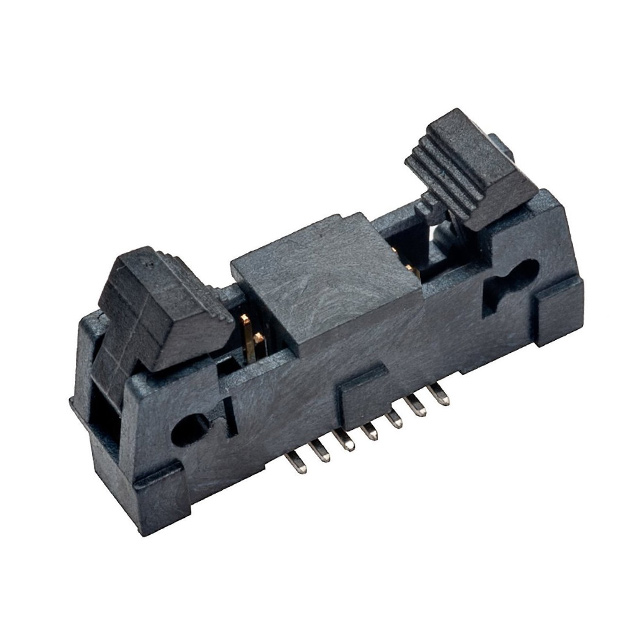

7+7 POS. MALE DIL VERTICAL SMT CONN. WITH EJECTOR (T+R) ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M50-3650742R
ActiveHarwin Inc.
7+7 POS. MALE DIL VERTICAL SMT CONN. WITH EJECTOR (T+R) ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M50-3650742R |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Mating | 3.05 mm |
| Contact Length - Mating | 0.12 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1.75 A |
| Fastening Type | Latch Lock/Eject Hooks |
| Features | Pick and Place, Board Lock, Keying Slot |
| Insulation Color | Black |
| Insulation Height | 8.25 mm |
| Insulation Height | 0.325 in |
| Mated Stacking Heights | 11.85 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M50-365 Series
Connector Header Surface Mount 14 position 0.050" (1.27mm)
