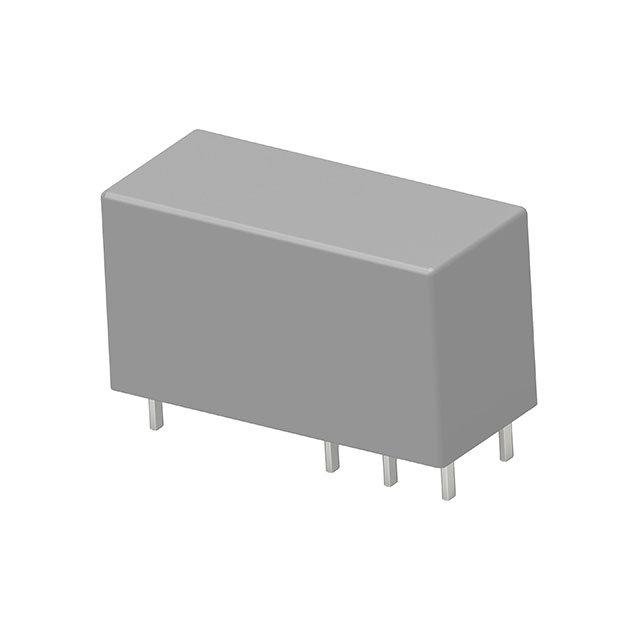

4-1393243-2

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4-1393243-2	1393243 Series

Approval Agency	cURus, CQC, VDE, CSA	cURus, CQC, VDE, CSA
Coil Current	16.7 mA	16.7 - 66.7 mA
Coil Insulation	Class F	Class F
Coil Resistance	1440 Ohms	90 - 1440 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	24 VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO), Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	8 A	8 A
Load - Max Switching	3200 VA	3200 VA
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	16.8 VDC	4.2 - 16.8 VDC
Must Release Voltage	2.4 VDC	0.6 - 2.4 VDC
Operate Time	8 ms	8 ms
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	6 ms	6 ms
Seal Rating	Sealed - Flux Protection	Sealed - Flux Protection
Switching Voltage [Max]	400 VAC	400 VAC
Termination Style	PC Pin	PC Pin

RELAY GEN PURPOSE

Part	Relay Type	Release Time	Must Release Voltage	Coil Current	Contact Form	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching	Mounting Type	Coil Insulation	Contact Material	Coil Voltage	Contact Rating (Current)	Seal Rating	Must Operate Voltage	Coil Type	Approval Agency	Coil Resistance	Operate Time	Switching Voltage [Max]
TE Connectivity Potter & Brumfield Relays 4-1393243-2	General Purpose	6 ms	2.4 VDC	16.7 mA	DPDT (2 Form C)	PC Pin	-40 °C	70 °C	3200 VA	Through Hole	Class F	Silver Tin Oxide (AgSnO)	24 VDC	8 A	Sealed - Flux Protection	16.8 VDC	Non Latching	CQC, CSA, cURus, VDE	1440 Ohms	8 ms	400 VAC
TE Connectivity Potter & Brumfield Relays 8-1393243-1	General Purpose	6 ms	0.6 VDC	66.7 mA	DPDT (2 Form C)	PC Pin	-40 °C	85 °C	3200 VA	Through Hole	Class F	Gold (Au), Silver Nickel (AgNi)		8 A	Sealed - Flux Protection	4.2 VDC	Non Latching	CQC, CSA, cURus, VDE	90 Ohms	8 ms	400 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1500	$ 4.98

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole
