8-1393243-1

Active

TE Connectivity Potter & Brumfield Relays

RT425006

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RT425006

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 6.25

General part information

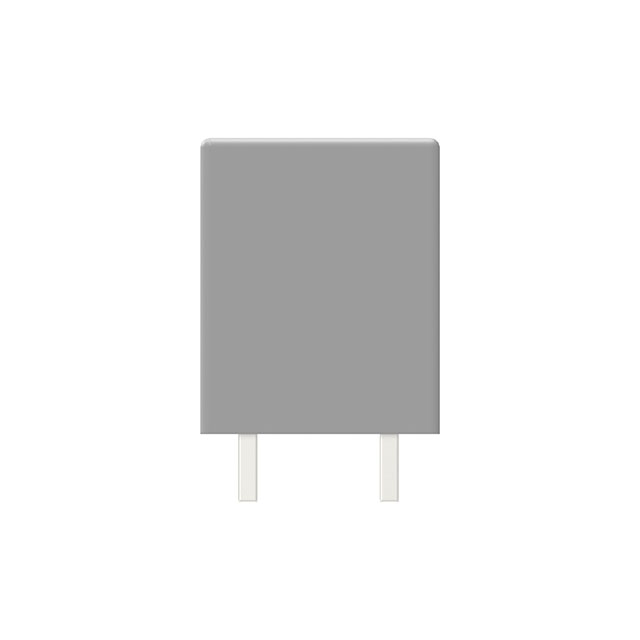

General Purpose Relay DPDT (2 Form C) 6VDC Coil Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	8-1393243-1	1393243 Series

Approval Agency	cURus, CQC, VDE, CSA	cURus, CQC, VDE, CSA
Coil Current	66.7 mA	16.7 - 66.7 mA
Coil Insulation	Class F	Class F
Coil Resistance	90 Ohms	90 - 1440 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	-	24 VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)	Silver Tin Oxide (AgSnO), Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	8 A	8 A
Load - Max Switching	3200 VA	3200 VA
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	4.2 VDC	4.2 - 16.8 VDC
Must Release Voltage	0.6 VDC	0.6 - 2.4 VDC
Operate Time	8 ms	8 ms
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	6 ms	6 ms
Seal Rating	Sealed - Flux Protection	Sealed - Flux Protection
Switching Voltage [Max]	400 VAC	400 VAC
Termination Style	PC Pin	PC Pin

RELAY GEN PURPOSE

Part	Relay Type	Release Time	Must Release Voltage	Coil Current	Contact Form	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching	Mounting Type	Coil Insulation	Contact Material	Coil Voltage	Contact Rating (Current)	Seal Rating	Must Operate Voltage	Coil Type	Approval Agency	Coil Resistance	Operate Time	Switching Voltage [Max]
TE Connectivity Potter & Brumfield Relays 4-1393243-2	General Purpose	6 ms	2.4 VDC	16.7 mA	DPDT (2 Form C)	PC Pin	-40 °C	70 °C	3200 VA	Through Hole	Class F	Silver Tin Oxide (AgSnO)	24 VDC	8 A	Sealed - Flux Protection	16.8 VDC	Non Latching	CQC, CSA, cURus, VDE	1440 Ohms	8 ms	400 VAC
TE Connectivity Potter & Brumfield Relays 8-1393243-1	General Purpose	6 ms	0.6 VDC	66.7 mA	DPDT (2 Form C)	PC Pin	-40 °C	85 °C	3200 VA	Through Hole	Class F	Gold (Au), Silver Nickel (AgNi)		8 A	Sealed - Flux Protection	4.2 VDC	Non Latching	CQC, CSA, cURus, VDE	90 Ohms	8 ms	400 VAC
