2952198

Active

Phoenix Contact

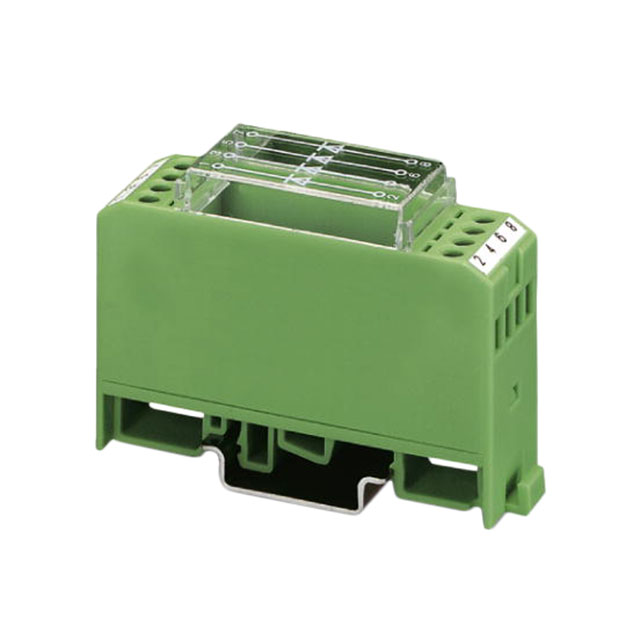

DIODE MODULE GP 1000V

Search across all available documentation for this part.

Active

Phoenix Contact

DIODE MODULE GP 1000V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 72.08

General part information

Diode Array 4 Common Cathode 1000 V DIN Rail Module

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2952198	29521 Series

Approval Agency	-	EAC
Coil Current	-	16 - 21 mA
Coil Resistance	-	14.4 - 1142 kOhms
Coil Type	-	Non Latching
Coil Voltage	-	24 - 230 VAC
Contact Form	-	DPDT (2 Form C), SPDT (1 Form C)
Contact Material	-	Silver Nickel (AgNi)
Contact Rating (Current)	-	3 - 5 A
Current - Reverse Leakage @ Vr	10 çA	10 çA
Diode Configuration	4 Common Cathode	4 Common Cathode
Features	-	Socket Included, Diode, Lighted Indicator
Load - Max Switching	-	120 - 1250 VA
Mounting Type	DIN Rail	DIN Rail
Operate Time	-	9 - 15 ms
Operating Temperature	-	50 °C
Operating Temperature	-	-20 C
Operating Temperature - Junction [Max]	50 °C	50 °C
Operating Temperature - Junction [Min]	-20 °C	-20 °C
Package / Case	Module	Module
Relay Type	-	General Purpose
Release Time	-	10 - 25 ms
Speed	Standard Recovery >500ns	Standard Recovery >500ns
Speed	200 mA	200 mA
Supplier Device Package	Module	Module
Switching Voltage	-	110 - 250 VAC
Technology	Standard	Standard
Termination Style	-	Screw Terminal
Voltage - DC Reverse (Vr) (Max) [Max]	1000 V	1000 V

RELAY GEN PURPOSE DPDT 3A 230V

Part	Contact Material	Coil Current	Approval Agency	Contact Form	Coil Type	Relay Type	Coil Resistance	Switching Voltage	Features	Coil Voltage	Release Time	Operate Time	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Rating (Current)	Technology	Diode Configuration	Supplier Device Package	Speed	Speed	Package / Case	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Load - Max Switching
Phoenix Contact 2952185	Silver Nickel (AgNi)	16 mA	EAC	DPDT (2 Form C)	Non Latching	General Purpose	14.4 kOhms	110 VDC, 250 VAC	Diode, Socket Included	230 VAC	25 ms	15 ms	DIN Rail	50 °C	-20 C	Screw Terminal	3 A
Phoenix Contact 2952198													DIN Rail					Standard	4 Common Cathode	Module	Standard Recovery >500ns	200 mA	Module	10 çA	50 °C	-20 °C	1000 V
Phoenix Contact 2952169	Silver Nickel (AgNi)	21 mA	EAC	SPDT (1 Form C)	Non Latching	General Purpose	1142 Ohms	250 VAC, 250 VDC	Diode, Lighted Indicator, Socket Included	24 VDC	10 ms	9 ms	DIN Rail	50 °C	-20 C	Screw Terminal	5 A											120 W, 1250 VA
