2952185

Active

Phoenix Contact

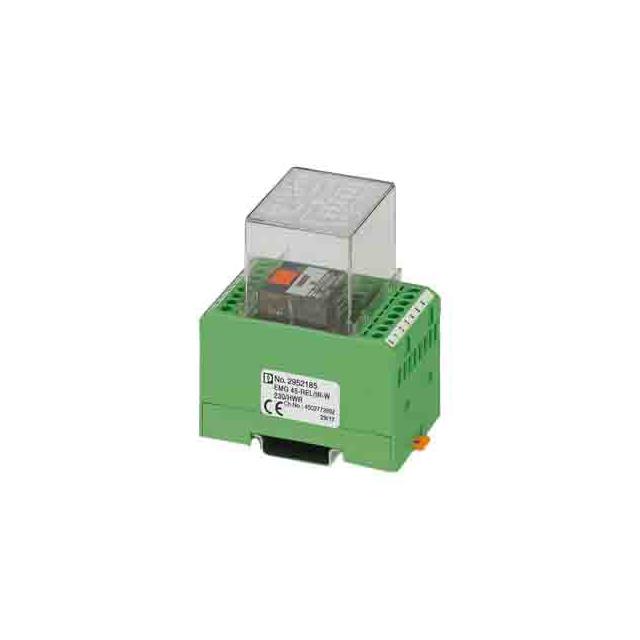

RELAY GEN PURPOSE DPDT 3A 230V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 3A 230V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 206.30

General part information

General Purpose Relay DPDT (2 Form C) 230VAC Coil DIN Rail

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2952185	29521 Series

Approval Agency	EAC	EAC
Coil Current	16 mA	16 - 21 mA
Coil Resistance	14.4 kOhms	14.4 - 1142 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	230 VAC	24 - 230 VAC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C), SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Contact Rating (Current)	3 A	3 - 5 A
Current - Reverse Leakage @ Vr	-	10 çA
Diode Configuration	-	4 Common Cathode
Features	Socket Included, Diode	Socket Included, Diode, Lighted Indicator
Load - Max Switching	-	120 - 1250 VA
Mounting Type	DIN Rail	DIN Rail
Operate Time	15 ms	9 - 15 ms
Operating Temperature - Junction	-	50 °C
Operating Temperature - Junction	-	-20 °C
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-20 C	-20 C
Package / Case	-	Module
Relay Type	General Purpose	General Purpose
Release Time	25 ms	10 - 25 ms
Speed	-	Standard Recovery >500ns
Speed	-	200 mA
Supplier Device Package	-	Module
Switching Voltage	250 VAC, 110 VDC	110 - 250 VAC
Technology	-	Standard
Termination Style	Screw Terminal	Screw Terminal
Voltage - DC Reverse (Vr) (Max)	-	1000 V

RELAY GEN PURPOSE DPDT 3A 230V

Part	Contact Material	Coil Current	Approval Agency	Contact Form	Coil Type	Relay Type	Coil Resistance	Switching Voltage	Features	Coil Voltage	Release Time	Operate Time	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Rating (Current)	Technology	Diode Configuration	Supplier Device Package	Speed	Speed	Package / Case	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Load - Max Switching
Phoenix Contact 2952185	Silver Nickel (AgNi)	16 mA	EAC	DPDT (2 Form C)	Non Latching	General Purpose	14.4 kOhms	110 VDC, 250 VAC	Diode, Socket Included	230 VAC	25 ms	15 ms	DIN Rail	50 °C	-20 C	Screw Terminal	3 A
Phoenix Contact 2952198													DIN Rail					Standard	4 Common Cathode	Module	Standard Recovery >500ns	200 mA	Module	10 çA	50 °C	-20 °C	1000 V
Phoenix Contact 2952169	Silver Nickel (AgNi)	21 mA	EAC	SPDT (1 Form C)	Non Latching	General Purpose	1142 Ohms	250 VAC, 250 VDC	Diode, Lighted Indicator, Socket Included	24 VDC	10 ms	9 ms	DIN Rail	50 °C	-20 C	Screw Terminal	5 A											120 W, 1250 VA
