Connectors, Interconnects

1-770186-0

Active

TE Connectivity Raychem Cable Protection

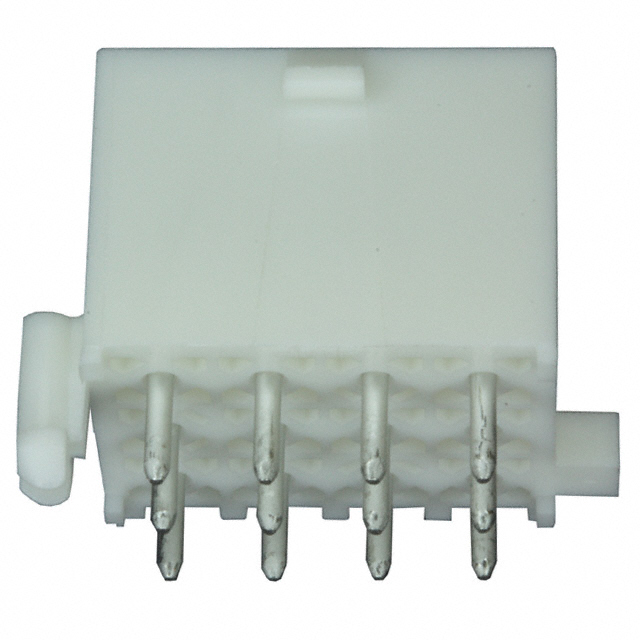

PIN HEADER, WIRE-TO-BOARD, 4.14 MM, 3 ROWS, 12 CONTACTS, THROUGH HOLE

Search across all available documentation for this part.

Connectors, Interconnects

Active

TE Connectivity Raychem Cable Protection

PIN HEADER, WIRE-TO-BOARD, 4.14 MM, 3 ROWS, 12 CONTACTS, THROUGH HOLE

Technical Specifications

Parameters and characteristics for this part

Specification	1-770186-0

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	150 Áin
Contact Finish Thickness - Mating	3.81 Ám
Contact Finish Thickness - Post	150 Áin
Contact Finish Thickness - Post	3.81 Ám
Contact Length - Post	4.45 mm
Contact Length - Post	0.175 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	White
Insulation Height	13.5 mm
Insulation Height	0.531 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Pitch - Mating	4.14 mm
Pitch - Mating	0.163 in
Row Spacing - Mating	4.14 mm
Row Spacing - Mating	0.163 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

Part	Row Spacing - Mating	Row Spacing - Mating	Applications	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Current Rating (Amps)	Insulation Material	Voltage Rating	Termination	Insulation Height	Insulation Height	Style	Contact Material	Contact Finish - Mating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Shape	Fastening Type	Connector Type	Mounting Type	Number of Positions	Insulation Color	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Material Flammability Rating
TE Connectivity Raychem Cable Protection 770186-2	4.14 mm	0.163 in	General Purpose	Shrouded - 4 Wall	30 Áin	0.76 Ám	-20 C	105 ░C	Male Pin	Varies by Wire Gauge	Nylon Polyamide (PA)	600 VAC	Solder	13.5 mm	0.531 in	Board to Cable/Wire	Brass	Gold	All	4.45 mm	0.175 in	Circular	Locking Ramp	Header	Through Hole	12	White	3	150 Áin	3.81 Ám	4.14 mm	0.163 in	Tin-Lead	UL94 V-0
TE Connectivity Raychem Cable Protection 1-770186-0	4.14 mm	0.163 in	General Purpose	Shrouded - 4 Wall	150 Áin	3.81 Ám	-20 C	85 °C	Male Pin	Varies by Wire Gauge	Nylon Polyamide (PA)	600 VAC	Solder	13.5 mm	0.531 in	Board to Cable/Wire	Brass		All	4.45 mm	0.175 in	Circular	Locking Ramp	Header	Through Hole	12	White	3	150 Áin	3.81 Ám	4.14 mm	0.163 in	Tin	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 12 position 0.163" (4.14mm)
