770186 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

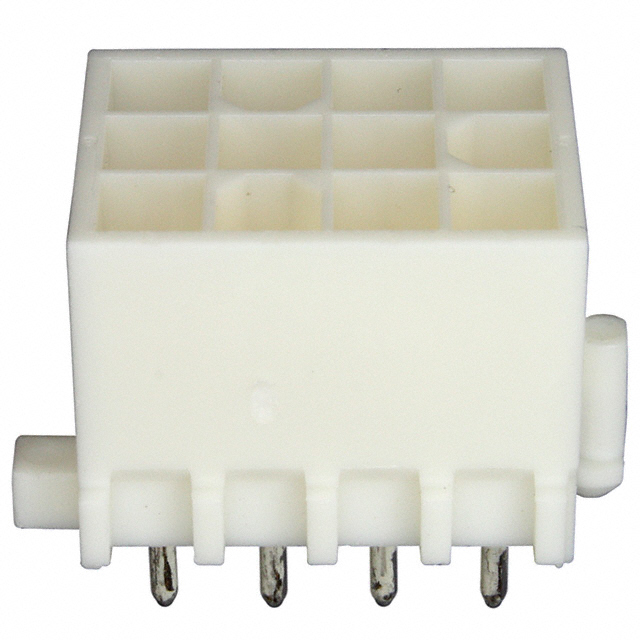

CONN HEADER VERT 12POS 4.14MM
| Part | Row Spacing - Mating | Row Spacing - Mating | Applications | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Current Rating (Amps) | Insulation Material | Voltage Rating | Termination | Insulation Height | Insulation Height | Style | Contact Material | Contact Finish - Mating | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Contact Shape | Fastening Type | Connector Type | Mounting Type | Number of Positions | Insulation Color | Number of Rows | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 4.14 mm | 0.163 in | General Purpose | Shrouded - 4 Wall | 30 Áin | 0.76 Ám | -20 C | 105 ░C | Male Pin | Varies by Wire Gauge | Nylon Polyamide (PA) | 600 VAC | Solder | 13.5 mm | 0.531 in | Board to Cable/Wire | Brass | Gold | All | 4.45 mm | 0.175 in | Circular | Locking Ramp | Header | Through Hole | 12 | White | 3 | 150 Áin | 3.81 Ám | 4.14 mm | 0.163 in | Tin-Lead | UL94 V-0 |
 TE Connectivity Raychem Cable Protection | 4.14 mm | 0.163 in | General Purpose | Shrouded - 4 Wall | 150 Áin | 3.81 Ám | -20 C | 85 °C | Male Pin | Varies by Wire Gauge | Nylon Polyamide (PA) | 600 VAC | Solder | 13.5 mm | 0.531 in | Board to Cable/Wire | Brass | All | 4.45 mm | 0.175 in | Circular | Locking Ramp | Header | Through Hole | 12 | White | 3 | 150 Áin | 3.81 Ám | 4.14 mm | 0.163 in | Tin | UL94 V-0 |
