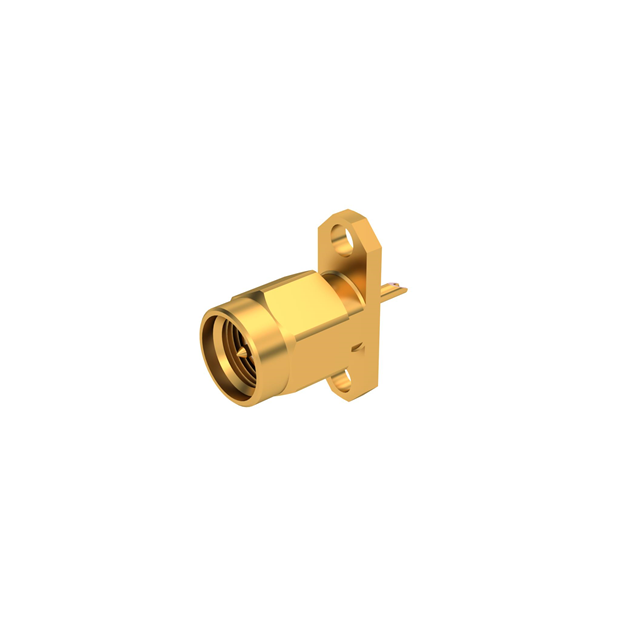

RF SMA CONNECTOR, MALE, PANEL MOUNT, SOLDER TERMINAL, RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
R125483000
ActiveRadiall USA, Inc.
RF SMA CONNECTOR, MALE, PANEL MOUNT, SOLDER TERMINAL, RECEPTACLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R125483000 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
R12548 Series
| Part | Dielectric Material | Frequency - Max [Max] | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Shield Termination | Body Finish | Number of Ports | Contact Termination | Mounting Feature | Center Contact Plating | Center Contact Material | Voltage Rating | Body Material | Housing Color | Features | Impedance | Connector Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 18 GHz | Male Pin Plug | -65 ░C | 165 °C | 500 | Solder | Gold | 1 | Solder | Flange | Gold | Brass | 500 V | Stainless Steel | Gold | Extended Insulation | 50 Ohms | SMA | |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 18 GHz | Male Pin Receptacle | -65 ░C | 105 ░C | 500 | Screw | 1 | Compression | Flange | Gold | Beryllium Copper | 500 V | Stainless Steel | Silver | 50 Ohms | SMA | |||
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 18 GHz | Male Pin Plug | -65 ░C | 165 °C | 500 | Solder | 1 | Solder | Flange | Gold | Brass | 500 V | Stainless Steel | Silver | Extended Insulation | 50 Ohms | SMA | ||
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 18 GHz | Male Pin Plug | -65 ░C | 165 °C | 500 | Solder | 1 | Solder | Flange | Gold | Brass | 500 V | Stainless Steel | Silver | Extended Insulation | 50 Ohms | SMA | ||
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 18 GHz | Male Pin Plug | -65 ░C | 165 °C | 500 | Solder | 1 | Solder Cup | Flange | Gold | Brass | 500 V | Stainless Steel | Silver | 50 Ohms | SMA | |||
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 18 GHz | Male Pin Plug | -65 ░C | 165 °C | 500 | Solder | Gold | 1 | Solder Tab | Flange | Gold | Beryllium Copper | 500 V | Stainless Steel | Gold | 50 Ohms | SMA | Panel Mount Through Hole | |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 18 GHz | Male Pin Plug | -65 ░C | 165 °C | 500 | Solder | Gold | 1 | Solder Cup | Flange | Gold | Brass | 500 V | Stainless Steel | Gold | 50 Ohms | SMA | ||
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 18 GHz | Male Pin Receptacle | -65 ░C | 105 ░C | 500 | Screw | 1 | Compression | Flange | Gold | Beryllium Copper | 500 V | Stainless Steel | Silver | 50 Ohms | SMA | |||
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 18 GHz | Male Pin Plug | -65 ░C | 165 °C | 500 | Solder | Gold | 1 | Solder | Flange | Gold | Brass | 500 V | Stainless Steel | Gold | Extended Insulation | 50 Ohms | SMA |
