R125480001

Active

Radiall USA, Inc.

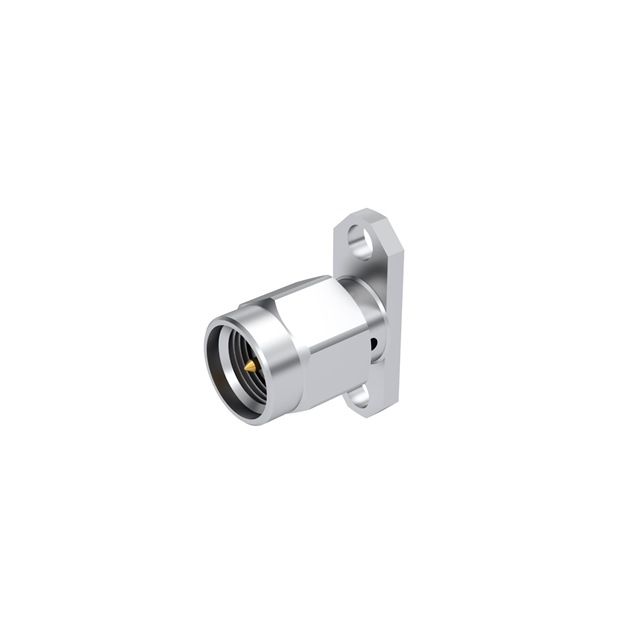

SMA / 2 HOLE FLANGE MALE RECEPTA

Deep-Dive with AI

Search across all available documentation for this part.

R125480001

Active

Radiall USA, Inc.

SMA / 2 HOLE FLANGE MALE RECEPTA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R125480001

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Receptacle
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw
Voltage Rating	500 V

R12548 Series

Part	Dielectric Material	Frequency - Max [Max]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Shield Termination	Body Finish	Number of Ports	Contact Termination	Mounting Feature	Center Contact Plating	Center Contact Material	Voltage Rating	Body Material	Housing Color	Features	Impedance	Connector Style	Mounting Type
Radiall USA, Inc. R125484000W	Polytetrafluoroethylene (PTFE)	18 GHz	Male Pin Plug	-65 ░C	165 °C	500	Solder	Gold	1	Solder	Flange	Gold	Brass	500 V	Stainless Steel	Gold	Extended Insulation	50 Ohms	SMA
Radiall USA, Inc. R125480001	Polytetrafluoroethylene (PTFE)	18 GHz	Male Pin Receptacle	-65 ░C	105 ░C	500	Screw		1	Compression	Flange	Gold	Beryllium Copper	500 V	Stainless Steel	Silver		50 Ohms	SMA
Radiall USA, Inc. R125484001W	Polytetrafluoroethylene (PTFE)	18 GHz	Male Pin Plug	-65 ░C	165 °C	500	Solder		1	Solder	Flange	Gold	Brass	500 V	Stainless Steel	Silver	Extended Insulation	50 Ohms	SMA
Radiall USA, Inc. R125484001	Polytetrafluoroethylene (PTFE)	18 GHz	Male Pin Plug	-65 ░C	165 °C	500	Solder		1	Solder	Flange	Gold	Brass	500 V	Stainless Steel	Silver	Extended Insulation	50 Ohms	SMA
Radiall USA, Inc. R125483001	Polytetrafluoroethylene (PTFE)	18 GHz	Male Pin Plug	-65 ░C	165 °C	500	Solder		1	Solder Cup	Flange	Gold	Brass	500 V	Stainless Steel	Silver		50 Ohms	SMA
Radiall USA, Inc. R125488000	Polytetrafluoroethylene (PTFE)	18 GHz	Male Pin Plug	-65 ░C	165 °C	500	Solder	Gold	1	Solder Tab	Flange	Gold	Beryllium Copper	500 V	Stainless Steel	Gold		50 Ohms	SMA	Panel Mount Through Hole
Radiall USA, Inc. R125483000	Polytetrafluoroethylene (PTFE)	18 GHz	Male Pin Plug	-65 ░C	165 °C	500	Solder	Gold	1	Solder Cup	Flange	Gold	Brass	500 V	Stainless Steel	Gold		50 Ohms	SMA
Radiall USA, Inc. R125480001W	Polytetrafluoroethylene (PTFE)	18 GHz	Male Pin Receptacle	-65 ░C	105 ░C	500	Screw		1	Compression	Flange	Gold	Beryllium Copper	500 V	Stainless Steel	Silver		50 Ohms	SMA
Radiall USA, Inc. R125484000	Polytetrafluoroethylene (PTFE)	18 GHz	Male Pin Plug	-65 ░C	165 °C	500	Solder	Gold	1	Solder	Flange	Gold	Brass	500 V	Stainless Steel	Gold	Extended Insulation	50 Ohms	SMA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 36.64

Description

General part information

R12548 Series

SMA Connector Receptacle, Male Pin 50 Ohms Panel Mount Compression

Documents

Technical documentation and resources

No documents available
