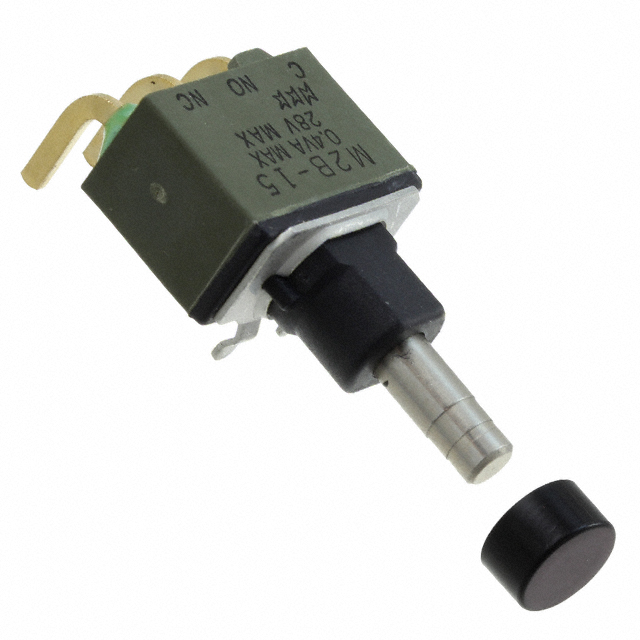

M2B15AA5G30-HA

Active

NKK Switches

PROCESS SEALED MINIATURE PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2B15AA5G30-HA

Active

NKK Switches

PROCESS SEALED MINIATURE PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2B15AA5G30-HA

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Process Sealed
Mechanical Life	200000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2B15AA Series

Part	Electrical Life	Mounting Type	Mechanical Life	Actuator Type	Termination Style	Features	Voltage Rating - DC	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Color - Actuator/Cap	Voltage Rating - AC	Type	Switch Function	Current Rating (Amps)
NKK Switches M2B15AA5W03-HC	25000 Steps	Through Hole	200000 Cycles	Button Round	PC Pin	Process Sealed	30 V	SPDT	-30 ░C	85 °C	No Marking	Red	125 V	Standard	On-Mom
NKK Switches M2B15AA5W03-HA	25000 Steps	Through Hole	200000 Cycles	Button Round	PC Pin	Process Sealed	30 V	SPDT	-30 ░C	85 °C	No Marking	Black	125 V	Standard	On-Mom
NKK Switches M2B15AA5W03-FA	25000 Steps	Through Hole	200000 Cycles	Button Round	PC Pin	Process Sealed	30 V	SPDT	-30 ░C	85 °C	No Marking	Black	125 V	Standard	On-Mom
NKK Switches M2B15AA5G30-HC	100000 Cycles	Through Hole Right Angle	200000 Cycles	Button Round	PC Pin	Process Sealed	28 V	SPDT	-30 ░C	85 °C	No Marking	Red	28 V	Standard	On-Mom	0.4 VA
NKK Switches M2B15AA5G30-HA	100000 Cycles	Through Hole Right Angle	200000 Cycles	Button Round	PC Pin	Process Sealed	28 V	SPDT	-30 ░C	85 °C	No Marking	Black	28 V	Standard	On-Mom	0.4 VA
NKK Switches M2B15AA5G13-HC	100000 Cycles	Through Hole	200000 Cycles	Button Round	PC Pin	Process Sealed	28 V	SPDT	-30 ░C	85 °C	No Marking	Red	28 V	Standard	On-Mom	0.4 VA
NKK Switches M2B15AA5G03-FC	100000 Cycles	Through Hole	200000 Cycles	Button Round	PC Pin	Process Sealed	28 V	SPDT	-30 ░C	85 °C	No Marking	Red	28 V	Standard	On-Mom	0.4 VA
NKK Switches M2B15AA5W13-FC	25000 Steps	Through Hole	200000 Cycles	Button Round	PC Pin	Process Sealed	30 V	SPDT	-30 ░C	85 °C	No Marking	Red	125 V	Standard	On-Mom
NKK Switches M2B15AA5G40-FA	100000 Cycles	Right Angle Through Hole Vertical	200000 Cycles	Button Round	PC Pin	Process Sealed	28 V	SPDT	-30 ░C	85 °C	No Marking	Black	28 V	Standard	On-Mom	0.4 VA
NKK Switches M2B15AA5W30	25000 Steps	Through Hole Right Angle	200000 Cycles	Plunger for Cap	PC Pin	Process Sealed	30 V	SPDT	-30 ░C	85 °C	No Marking		125 V	Standard	On-Mom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.99
Newark	Each	1	$ 13.83
		5	$ 12.90
		10	$ 11.87
		25	$ 10.83
		50	$ 9.79
		100	$ 8.65
		250	$ 7.77

Description

General part information

M2B15AA Series

Pushbutton Switch SPDT Standard Through Hole, Right Angle
