M2B15AA5W03-FA

Active

NKK Switches

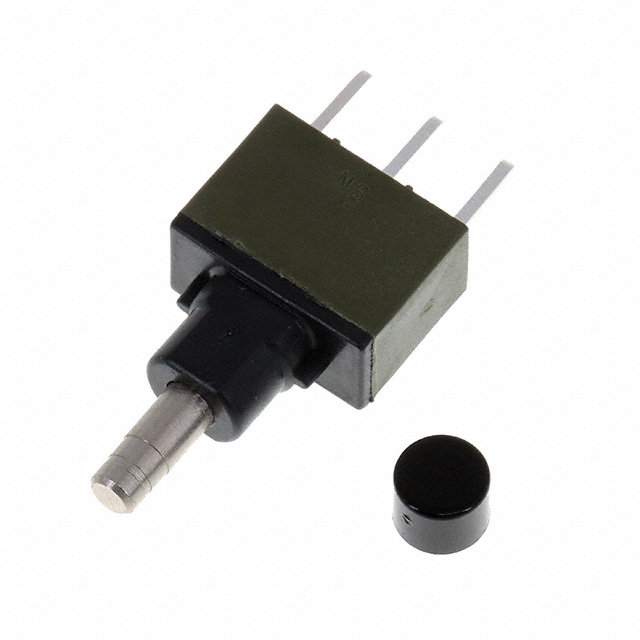

PROCESS SEALED MINIATURE PUSHBUTTON; POLES: SPDT; CIRCUITS: ON-MOM; CURRENT RATING: 1A (AC/DC); RATING (AC): 125V; RATING (DC): 30V; ACTUATOR TYPE: ROUND, BUTTON; ACTUATOR CAP COLOR: BLACK; MOUNTING TYPE: THROUGH HOLE; TERMINATION STYLE: PC PIN; FEATURES: PROCESS SEALED; RATING: 1; ILLUMINATION: NON-ILLUMINATED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2B15AA5W03-FA

Active

NKK Switches

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2B15AA5W03-FA

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Black
Electrical Life	25000 Steps
Features	Process Sealed
Mechanical Life	200000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2B15AA Series

Part	Electrical Life	Mounting Type	Mechanical Life	Actuator Type	Termination Style	Features	Voltage Rating - DC	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Color - Actuator/Cap	Voltage Rating - AC	Type	Switch Function	Current Rating (Amps)
NKK Switches M2B15AA5W03-HC	25000 Steps	Through Hole	200000 Cycles	Button Round	PC Pin	Process Sealed	30 V	SPDT	-30 ░C	85 °C	No Marking	Red	125 V	Standard	On-Mom
NKK Switches M2B15AA5W03-HA	25000 Steps	Through Hole	200000 Cycles	Button Round	PC Pin	Process Sealed	30 V	SPDT	-30 ░C	85 °C	No Marking	Black	125 V	Standard	On-Mom
NKK Switches M2B15AA5W03-FA	25000 Steps	Through Hole	200000 Cycles	Button Round	PC Pin	Process Sealed	30 V	SPDT	-30 ░C	85 °C	No Marking	Black	125 V	Standard	On-Mom
NKK Switches M2B15AA5G30-HC	100000 Cycles	Through Hole Right Angle	200000 Cycles	Button Round	PC Pin	Process Sealed	28 V	SPDT	-30 ░C	85 °C	No Marking	Red	28 V	Standard	On-Mom	0.4 VA
NKK Switches M2B15AA5G30-HA	100000 Cycles	Through Hole Right Angle	200000 Cycles	Button Round	PC Pin	Process Sealed	28 V	SPDT	-30 ░C	85 °C	No Marking	Black	28 V	Standard	On-Mom	0.4 VA
NKK Switches M2B15AA5G13-HC	100000 Cycles	Through Hole	200000 Cycles	Button Round	PC Pin	Process Sealed	28 V	SPDT	-30 ░C	85 °C	No Marking	Red	28 V	Standard	On-Mom	0.4 VA
NKK Switches M2B15AA5G03-FC	100000 Cycles	Through Hole	200000 Cycles	Button Round	PC Pin	Process Sealed	28 V	SPDT	-30 ░C	85 °C	No Marking	Red	28 V	Standard	On-Mom	0.4 VA
NKK Switches M2B15AA5W13-FC	25000 Steps	Through Hole	200000 Cycles	Button Round	PC Pin	Process Sealed	30 V	SPDT	-30 ░C	85 °C	No Marking	Red	125 V	Standard	On-Mom
NKK Switches M2B15AA5G40-FA	100000 Cycles	Right Angle Through Hole Vertical	200000 Cycles	Button Round	PC Pin	Process Sealed	28 V	SPDT	-30 ░C	85 °C	No Marking	Black	28 V	Standard	On-Mom	0.4 VA
NKK Switches M2B15AA5W30	25000 Steps	Through Hole Right Angle	200000 Cycles	Plunger for Cap	PC Pin	Process Sealed	30 V	SPDT	-30 ░C	85 °C	No Marking		125 V	Standard	On-Mom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.79
		10	$ 5.86
		25	$ 5.52
		40	$ 5.36
		80	$ 5.13
		230	$ 4.79
		440	$ 4.59
		945	$ 4.37

Description

General part information

M2B15AA Series

Pushbutton Switch SPDT Standard Through Hole
