17-100464

Active

Amphenol CONEC

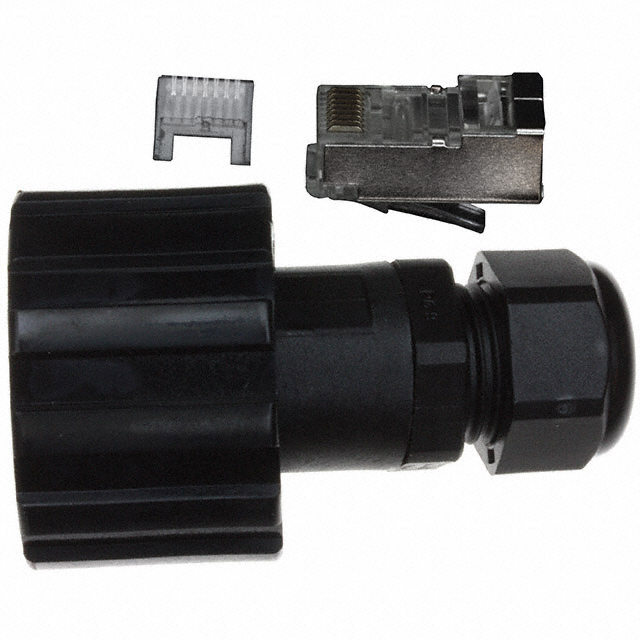

MOD CONN, RJ45 PLUG, 8P8C, PLASTIC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

MOD CONN, RJ45 PLUG, 8P8C, PLASTIC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	17-100464

Cable Type	Round Cable, Solid, Stranded Wires
Color	Translucent - Clear
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Current Rating (Amps)	1.2 A
Features	Strain Relief, Circular Threaded Coupling
Housing Material	Polycarbonate (PC)
Ingress Protection	IP67 - Dust Tight, Waterproof
Length	2.343 "
Length	59.5 mm
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat5e
Shield Material	Copper Alloy
Shielding	Shielded
Termination	IDC
Voltage Rating	100 V
Wire Gauge	24 AWG

Part	Connector Type	Termination	Shielding	Number of Ports	Orientation	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Contacts	Housing Material	Ratings	LED Color	Mounting Type	Number of Rows	Ingress Protection	Tab Direction	Features	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Color	Shield Material	Current Rating (Amps)	Wire Gauge	Cable Type	Voltage Rating	Length	Length
Amphenol CONEC 17-10040	Jack	PC Board Solder	Shielded	1	Straight	Gold	85 °C	-40 °C	8p8c (RJ45 Ethernet)	Polybutylene Terephthalate (PBT) Glass Filled	Cat5e	Does Not Contain LED	Bulkhead Panel Mount	1	IP67 - Dust Tight Waterproof	User Selectable	Circular Bayonet Coupling Cover Potted	Phosphor Bronze	50 µin	1.27 µm
Amphenol CONEC 17-100464	Plug	IDC	Shielded			Gold			8p8c (RJ45 Ethernet)	Polycarbonate (PC)	Cat5e				IP67 - Dust Tight Waterproof		Circular Threaded Coupling Strain Relief	Phosphor Bronze	50 µin	1.27 µm	Translucent - Clear	Copper Alloy	1.2 A	24 AWG	Round Cable Solid Stranded Wires	100 V	2.343 "	59.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat5e IDC
