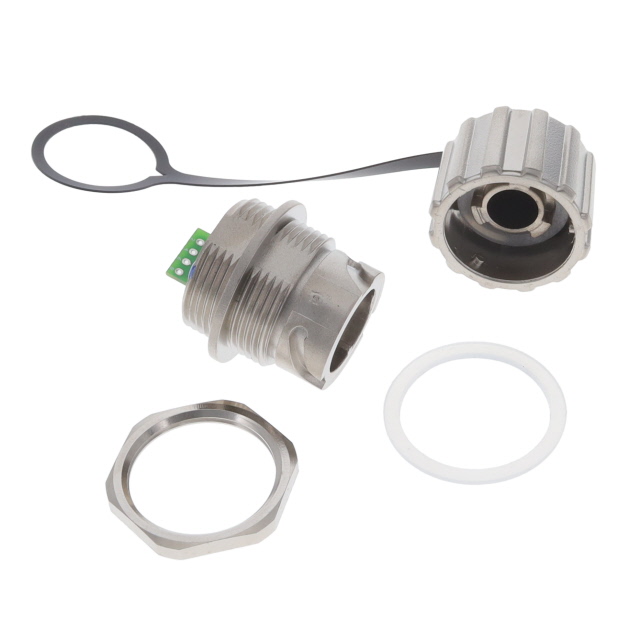

17-10040
ActiveAmphenol CONEC
CONN MOD JACK 8P8C SHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
17-10040
ActiveAmphenol CONEC
CONN MOD JACK 8P8C SHIELDED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 17-10040 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Features | Circular Bayonet Coupling, Potted, Cover |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| LED Color | Does Not Contain LED |
| Mounting Type | Bulkhead, Panel Mount |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Straight |
| Ratings | Cat5e |
| Shielding | Shielded |
| Tab Direction | User Selectable |
| Termination | PC Board, Solder |
17-1004 Series
| Part | Connector Type | Termination | Shielding | Number of Ports | Orientation | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Contacts | Housing Material | Ratings | LED Color | Mounting Type | Number of Rows | Ingress Protection | Tab Direction | Features | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Color | Shield Material | Current Rating (Amps) | Wire Gauge | Cable Type | Voltage Rating | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol CONEC | Jack | PC Board Solder | Shielded | 1 | Straight | Gold | 85 °C | -40 °C | 8p8c (RJ45 Ethernet) | Polybutylene Terephthalate (PBT) Glass Filled | Cat5e | Does Not Contain LED | Bulkhead Panel Mount | 1 | IP67 - Dust Tight Waterproof | User Selectable | Circular Bayonet Coupling Cover Potted | Phosphor Bronze | 50 µin | 1.27 µm | ||||||||
Amphenol CONEC | Plug | IDC | Shielded | Gold | 8p8c (RJ45 Ethernet) | Polycarbonate (PC) | Cat5e | IP67 - Dust Tight Waterproof | Circular Threaded Coupling Strain Relief | Phosphor Bronze | 50 µin | 1.27 µm | Translucent - Clear | Copper Alloy | 1.2 A | 24 AWG | Round Cable Solid Stranded Wires | 100 V | 2.343 " | 59.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.87 | |
| 10 | $ 19.86 | |||
Description
General part information
17-1004 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Shielded Cat5e
