333-030-500-802

Active

EDAC Inc.

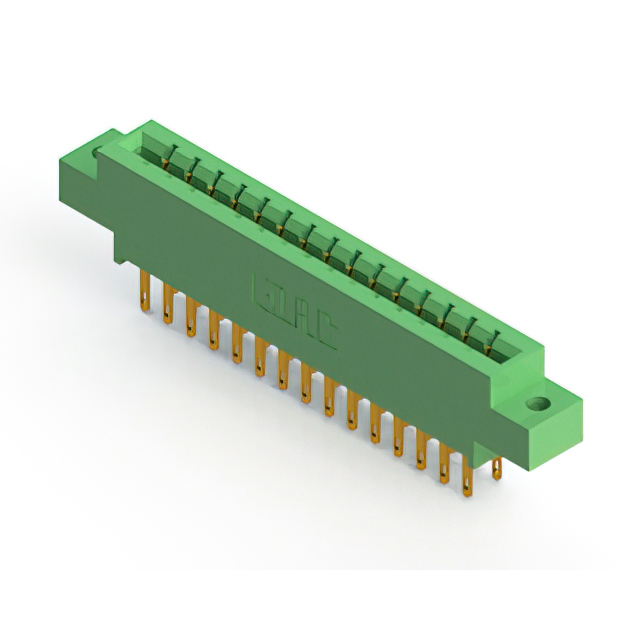

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 30 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

333-030-500-802

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 30 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-030-500-802

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	30
Number of Positions/Bay/Row [custom]	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

333-030 Series

...

Part	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Gender	Contact Material	Number of Rows	Contact Type	Color	Pitch [x]	Pitch [x]	Mounting Type	Material - Insulation	Number of Positions	Termination Rows	Card Type	Read Out	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish	Flange Feature	Flange Feature
EDAC Inc. 333-030-520-603	10 Áin	0.25 Ám	Solder	30	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Copper Alloy	1	Cantilever	Green	0.156 in	3.96 mm	Through Hole	Polyester Thermoplastic	30	1	Non Specified - Single Edge	Single	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Gold
EDAC Inc. 333-030-541-204	10 Áin	0.25 Ám	Wire Wrap	15	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Copper Alloy	2	Cantilever	Green	0.156 in	3.96 mm	Through Hole	Polyester Thermoplastic	30	2	Non Specified - Dual Edge	Dual	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Gold
EDAC Inc. 333-030-520-807	10 Áin	0.25 Ám	Solder	15	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Copper Alloy	2	Cantilever	Green	0.156 in	3.96 mm	Through Hole	Polyester Thermoplastic	30	2	Non Specified - Dual Edge	Dual		M3 Threaded Insert Top Mount Opening		Gold
EDAC Inc. 333-030-542-108	10 Áin	0.25 Ám	Wire Wrap	30	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Copper Alloy	1	Cantilever	Green	0.156 in	3.96 mm	Through Hole	Polyester Thermoplastic	30	1	Non Specified - Single Edge	Single		4-40 Flush Mount Threaded Insert Top Opening		Gold
EDAC Inc. 333-030-542-802	10 Áin	0.25 Ám	Wire Wrap	15	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Copper Alloy	2	Cantilever	Green	0.156 in	3.96 mm	Through Hole	Polyester Thermoplastic	30	2	Non Specified - Dual Edge	Dual				Gold	3.25 mm	0.128 in
EDAC Inc. 333-030-544-604	10 Áin	0.25 Ám	Wire Wrap	30	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Copper Alloy	1	Cantilever	Green	0.156 in	3.96 mm	Through Hole	Polyester Thermoplastic	30	1	Non Specified - Single Edge	Single	3.96 mm	Top Mount Opening Unthreaded	0.156 in	Gold
EDAC Inc. 333-030-524-104	10 Áin	0.25 Ám	Solder	30	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Copper Alloy	1	Cantilever	Green	0.156 in	3.96 mm	Through Hole	Polyester Thermoplastic	30	1	Non Specified - Single Edge	Single	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Gold
EDAC Inc. 333-030-520-203	10 Áin	0.25 Ám	Solder	15	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Copper Alloy	2	Cantilever	Green	0.156 in	3.96 mm	Through Hole	Polyester Thermoplastic	30	2	Non Specified - Dual Edge	Dual	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Gold
EDAC Inc. 333-030-521-612	10 Áin	0.25 Ám	Solder	30	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Copper Alloy	1	Cantilever	Green	0.156 in	3.96 mm	Through Hole	Polyester Thermoplastic	30	1	Non Specified - Single Edge	Single		Side Mount Opening Unthreaded		Gold	3.25 mm	0.128 in
EDAC Inc. 333-030-500-802	10 Áin	0.25 Ám	Solder Eyelet(s)	15	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Copper Alloy	2	Cantilever	Green	0.156 in	3.96 mm	Through Hole	Diallyl Phthalate (DAP)	30	2	Non Specified - Dual Edge	Dual				Gold	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 8.89
Newark	Each	25	$ 9.34
		50	$ 9.12
		100	$ 8.68
		250	$ 8.47
		500	$ 8.16

Description

General part information

333-030 Series

30 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green

Documents

Technical documentation and resources

Datasheet

Enhanced Product Overview EN

Datasheet

Drawing EN

Datasheet
